Particle multi - row packaging machine

Google recommends keywords

multilane packaging machine, shampoo sachet packing machine,sachet liquid packing machine,ketchup liquid packing machine

model:
fully automatic
Warranty:
1 Year for machinery warranty|1 Year for Core Components
Facebooklogo Gmaillogo linkinlogo Twitterlogo
Contact Us
  • Description
  • FAQ
Particle multi - row packaging machine Particle multi - row packaging machine Particle multi - row packaging machine

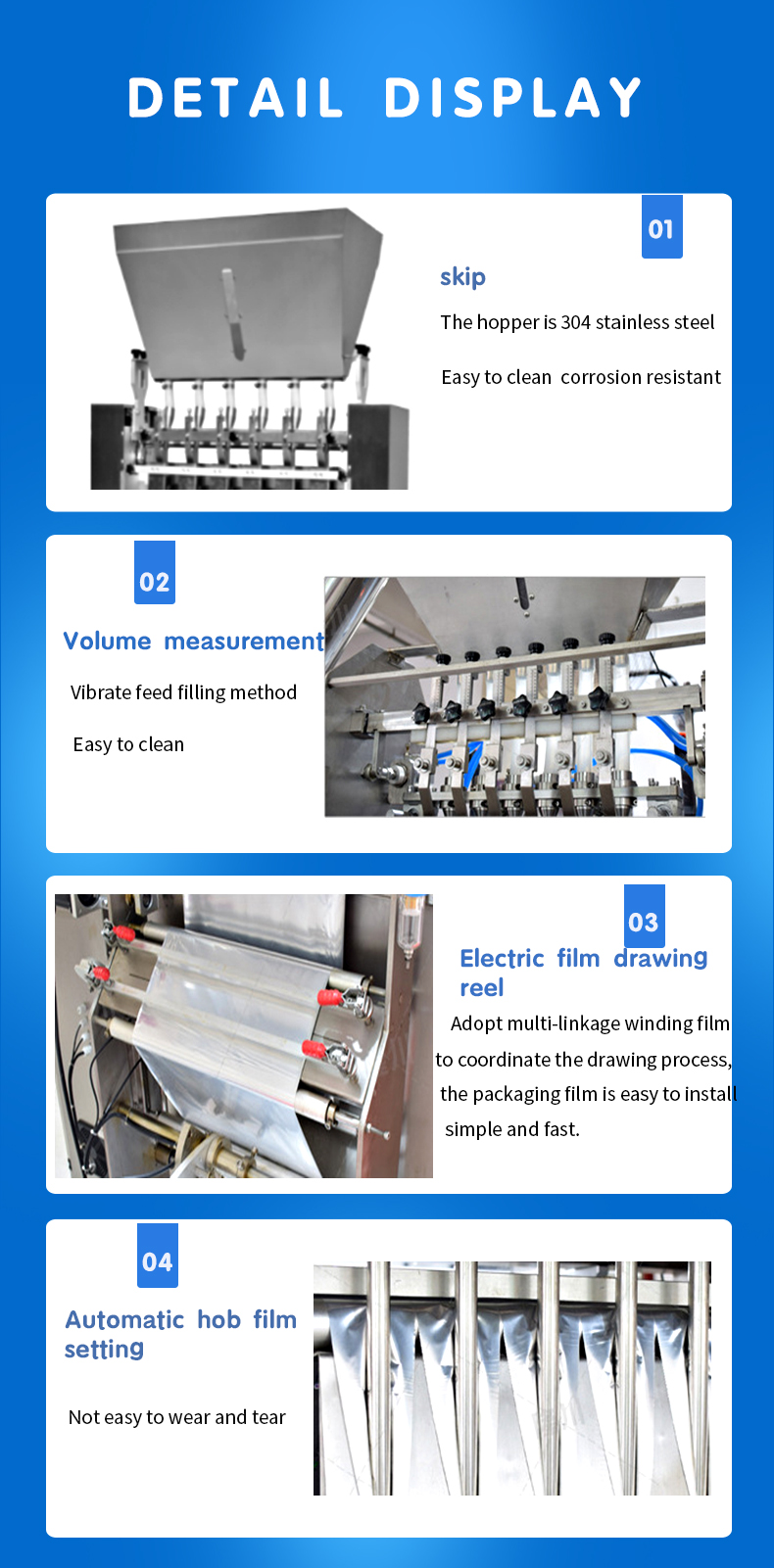

Equipment introductions:

1.The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming(date code printed) ,bag sealing and cutting.

2. Adopt advanced technology, humanized design, Japanese "Siemens" PLC + 5.7" touch screen control system, high degree of automation.

3. Automatic alarming, stopping and self-diagnosing when failure, can be viewed directly from the screen. It is safe, easy-using, quick maintain, automatically display the number of bags, and can easily count the workload of the machine.

4.Using the working principle of heat sealing , the motor controls film-pulling and the Capacity of stick -pulling is fast and stable.

5. High sensitive of photoelectric switch can automatically trace color mark accurately to obtain a complete trademark pattern.

6. Adopt an integrated framework makes adjustment more convenient.

7.The whole machine is made of 304 stainless steel and aluminum alloy(in lane with GMP standards)

Equipment parameters:

ModelMCDL480FMCDL800F
Bag length(mm)50~12050~120
Bag width(mm)40~6040~66
Film width(mm)Max190Max800
Lanes4-86-10
Capacity(cutting/min)35~50cut/min35~50cut/min
Sealing size(mm)Back sealing: 5~10/ Horizontal sealing: 10~20 (can be customized)
Power supply220v 50Hz 5.5kw220v 50Hz 7.5kkw
Compressed air0.6~0.8MPa M³/min0.6~0.8MPa M³/min
Bag Pulling modeServo bag pullingServo bag pulling
Cutting modeFlat cutting, zigzag cutting, rounded cutting, multi-bag cutting, etc.
Dimension L × W × H(mm)2088×508×19282088×1508×1928
