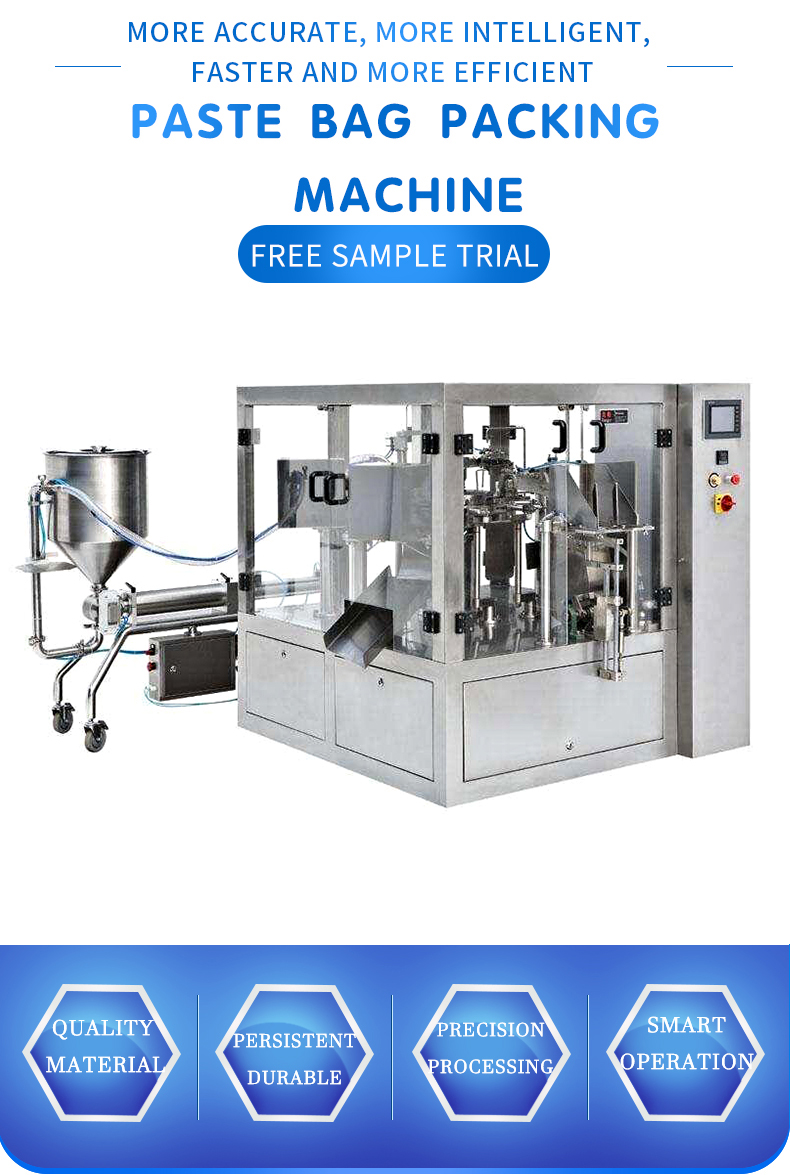

Paste bag packing machine

Google recommends keywords

Turntable Bag-feeding Packaging Machine ,ketchup liquid packing machine,fruit juice liquid packing machine,guang zhou marchi packing machine

model:
fully automatic
Warranty:
1 Year for machinery warranty|1 Year for Core Components
Facebooklogo Gmaillogo linkinlogo Twitterlogo
Contact Us
  • Description
  • FAQ
Powder feeding bag packing machine scope label

Equipment features:

1.Pouch form: flat pouch, stand up pouch, zipper pouch.

2.Packaging Materials: PE Composites, CPP Composites.

3.Packaging process: pouch taking-opening-metering-filling-sealing-product output.

4.Adopt mechanical transmission, more stable performance, simple maintenance, longer service life and low failure rate.

5.Adopt vacuum pouch opening mode .

6.Different pouch widths can be automatically adjusted.

7.No opening of the pouch no dosing of material.

8.Install safety guard doors.

Safety performances:

Safety performances:

1.No pouch - no filling - no sealing.

2.Pouch cannot be opened or opened incompletely - no filling - no sealing.

3.Heating device fault alarm.

4.The machine automatically shuts down when pressure current is lower than setting before.

5.The machine automatically shuts down when the hood is not closed or the door of the electric cabinet is not closed.

Model MCGD8-200 MCGD8-235 MCGD8-250 MCGD8-300 MCGD9-300 MCGD8-350
Packaging size L×W(mm) (100~300)×(100~200) (50~320)×(90~235) (150~500)×(150~300) (150~500)×(150~300) (200~520)×(160~300) (200~500)×(240~350)
Capacity(pouch/min) 25~50 25~50 25~45 20~40 10~30 10~25
Pouch material PE laminated film, aluminum foil, aluminum-plated film etc.
Pouch type Flat pouch, stand-up pouch, gusset bags, box bags, zipper pouch, suction nozzles bags, special-shaped pouch, etc.
Pouch feeding mode Horizontal pouch feeding, vertical pouch feeding
Pouch width adjustment Automatic adjustment, manual adjustment
Power supply 380V 50Hz 5.5kw 380V 50Hz 6.5kw 220V 50Hz 3.8kw 220V 50Hz 4.5kw 380V 50Hz 6.5kw 380V 50Hz 6.5kw
Compressed air 0.6~0.8 MPa 1.5m³/min 0.6~0.8 MPa 1.5m³/min 0.6~0.8 MPa 1.5m³/min 0.6~0.8 MPa 1.5m³/min 0.6~0.8 MPa 1.5m³/min 0.6~0.8 MPa 1.5m³/min
Total weight(t) 1.2 1.3 1.5 1.7 2.0 2.2
Dimension L×W×H(mm) 1645×1450×1480 2611×1895×1926 2676×1955×1674 2792×2123×1833 2800×1680×1906 2894×2615×1768
