dog feed packing machine,Pet food packing machine,Chicken feed packing machine,Animal feed packing machine

model:

fully automatic

Warranty:

1 Year for machinery warranty|1 Year for Core Components

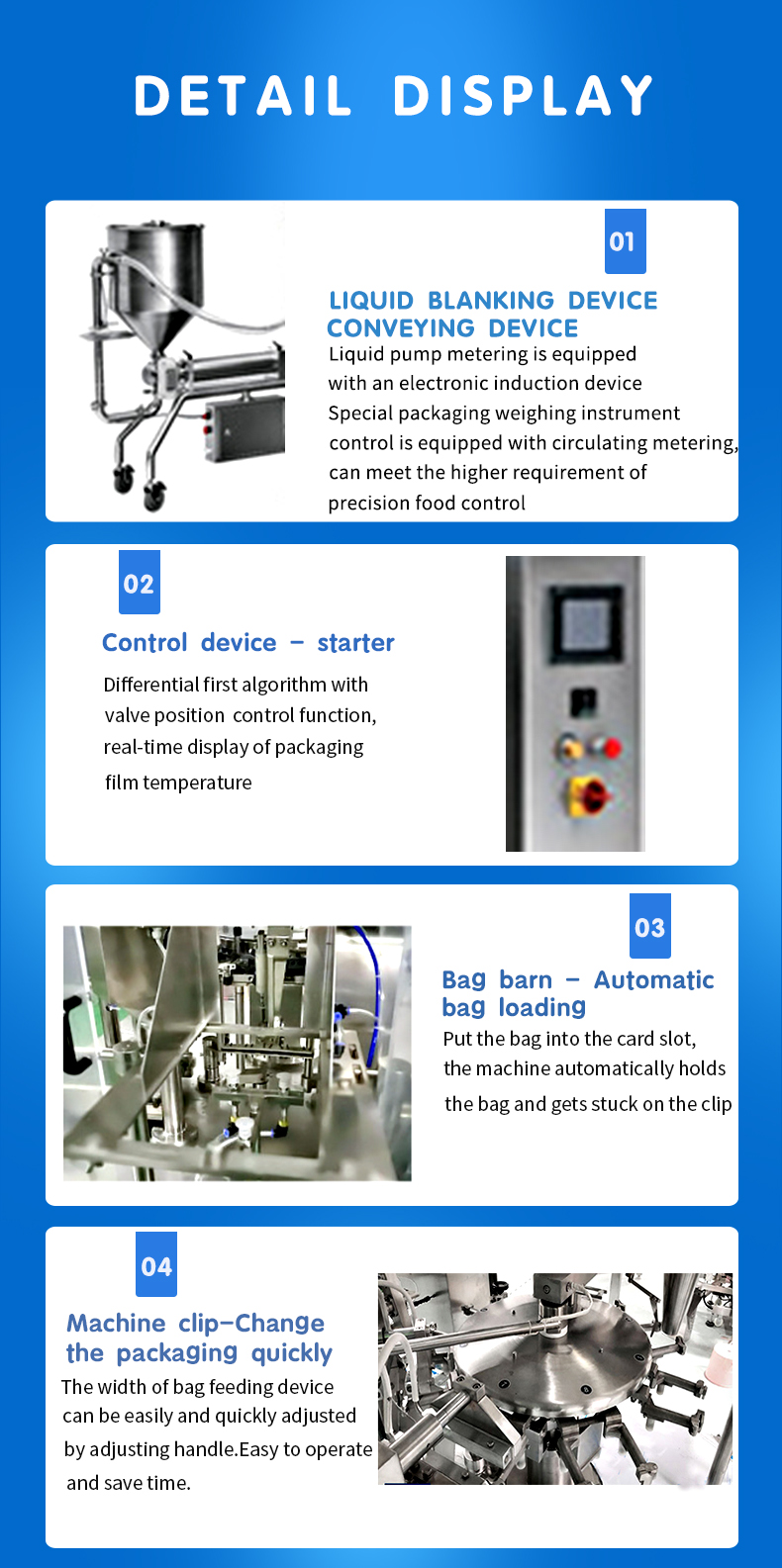

Equipment features:

1.Pouch form: flat pouch, stand up pouch, zipper pouch.

2.Packaging Materials: PE Composites, CPP Composites.

3.Packaging process: pouch taking-opening-metering-filling-sealing-product output.

4.Adopt mechanical transmission, more stable performance, simple maintenance, longer service life and low failure rate.

5.Adopt vacuum pouch opening mode .

6.Different pouch widths can be automatically adjusted

7..No opening of the pouch no dosing of material.

8.Install safety guard doors.

Safety performances:

1.No pouch - no filling - no sealing.

2.Pouch cannot be opened or opened incompletely - no filling - no sealing.

3.Heating device fault alarm.

4.The machine automatically shuts down when pressure current is lower than setting before.

5.The machine automatically shuts down when the hood is not closed or the door of the electric cabinet is not closed.

Equipment parameters:

Model	MCGD8-200	MCGD8-235	MCGD8-250	MCGD8-300	MCGD9-300	MCGD8-350
Packaging size L×W(mm)	(100～300)×(100～200)	(50～320)×(90～235)	(150～500)×(150～300)	(150～500)×(150～300)	(200～520)×(160～300)	(200～500)×(240～350)
Pouch material	PE laminated film, aluminum foil, aluminum-plated film etc.
Pouch type	Flat pouch, stand-up pouch, gusset bags, box bags, zipper pouch, suction nozzles bags, special-shaped pouch, etc.
Pouch feeding mode	Horizontal pouch feeding, vertical pouch feeding
Pouch width adjustment	Automatic adjustment, manual adjustment
Capacity(pouch/min)	25～50 package/min	25～50 package/min	25～45 package/min	20～40 package/min	10～30 package/min	10～25 package/min
Power supply	380V 50Hz 5.5kw	380V 50Hz 6.5kw	220V 50Hz 3.8kw	220V 50Hz 4.5kw	380V 50Hz 6.5kw	380V 50Hz 6.5kw
Compressed air	0.6～0.8 MPa 1.5m³/min	0.6～0.8 MPa 1.5m³/min	0.6～0.8 MPa 1.5m³/min	0.6～0.8 MPa 1.5m³/min	0.6～0.8 MPa 1.5m³/min	0.6～0.8 MPa 1.5m³/min
Total weight(t)	1.2ton	1.3ton	1.5 ton	1.7ton	2.0ton	2.2ton
Dimension L×W×H(mm)	1645×1450×1480	2611×1895×1926	2676×1955×1674	2792×2123×1833	2800×1680×1906	2894×2615×1768

Q1.CUSTOMER:HOW DO I KNOW THE PACKING MACHINE MODEL IS SULTABLE FOR MY PRODUCT?

beibei:Please advise all the belowdetails of your product and we will check for you.

1.Product details

2.Bag type,Bag width & bag length

3.Filling weight per bag

4.Packing film material
Q2.CUSTOMER:HOW ABOUT THE DELIVERY TIME?

beibei:All our machines are tailor-made as different customers have different re-quirements,delivery will be with within 20 days for the small packing machines.It takes longer time for the large-scale machine.
Q3.CUSTOMER:CAN YOU OFFER SOME VIDEO OR PICTURES OF THE PACKING MACHINE?

beibei:Yes,of course.We also could help you to test your product on our packing machine and record a video for you reference.
Q4.CUSTOMER:ARE YOU FACTORY OR TRADING COMPANY?

beibei:We are the factory,and especially R&D,manufactue and sell various packing machines.
