Oatmeal Dosing Filler Boosts Granule Canister Production; Automatic Oatmeal Filler Suits Nut Oatmeal Can Filling Needs

I. Model Selection and Core Configuration

For canning production scenarios of grain meal replacements and mixed nuts, oatmeal dosing fillers, automatic oatmeal fillers and nut oatmeal fillers are key granule filling equipment inspected by many food factories. Here we recommend the MCGZ‑JZ granule dosing filling equipment launched by Guangzhou Marchi Packaging Equipment Co., Ltd. With 27 years of experience in packaging equipment and rich practical project experience, the enterprise can carry out adaptive adjustments according to material characteristics, can specifications and production line takt time.

The MCGZ‑JZ nut oatmeal filler is compatible with various can types including PE cans, aluminum cans, paper cans and tin cans; customized moulds can be equipped for special can types. It realizes automatic quantitative filling for free‑flowing granule materials and operates with full‑line linkage, with production procedures complying with GMP standard requirements. The machine adapts to bottle diameters of 35～100 mm (customizable on demand), bottle heights of 40～200 mm and cap diameters of 15～100 mm. Its single filling weight ranges from 50 to 500 g, filling accuracy is maintained at ±0.3～1.5%, and operating speed reaches 30～80 bottles per minute. Power supply specification: 3P 380V 50Hz; air source demand: 0.6m³/min; stable operation is achievable at air pressure of 0.6～0.8MPa.

Multiple auxiliary units can be configured for the production line as required, including bottle unscrambler, weight sorter, automatic desiccant sachet dispenser, bottle surface dust removal device, manual operation station, coding equipment, automatic soft capping mechanism, finished product collection workbench, etc. Auxiliary modules can be combined as needed to complete the whole filling line.

II. Equipment Advantages and Packable Materials

This automatic oatmeal filler is optimized for granule canning and compatible with various mixed granules. It can process free‑flowing granule materials such as nut oatmeal, fruit oatmeal, instant oatmeal, coarse grain granules, grain crisps, freeze‑dried fruit granules, mixed nut kernels, grain meal replacement granules and expanded grain pellets.

The main equipment advantages are as follows:

1. Stable dosing. For granules with slight specific gravity differences such as oatmeal and mixed nuts, filling deviation can be controlled to reduce material loss;

2. Strong compatibility. Universal for conventional multi‑material can bodies; special‑shaped cans can be adapted via customized moulds;

3. Automated linkage. Reduces direct manual contact with materials and lowers errors caused by manual intervention;

4. Flexible configuration. Auxiliary process modules can be added or removed on demand, suitable for small‑and‑medium production lines and continuous production line retrofitting;

5. Convenient cleaning and maintenance. Material‑contact parts are easy to disassemble and clean, facilitating production switching between different material categories.

III. Complete Packaging Process

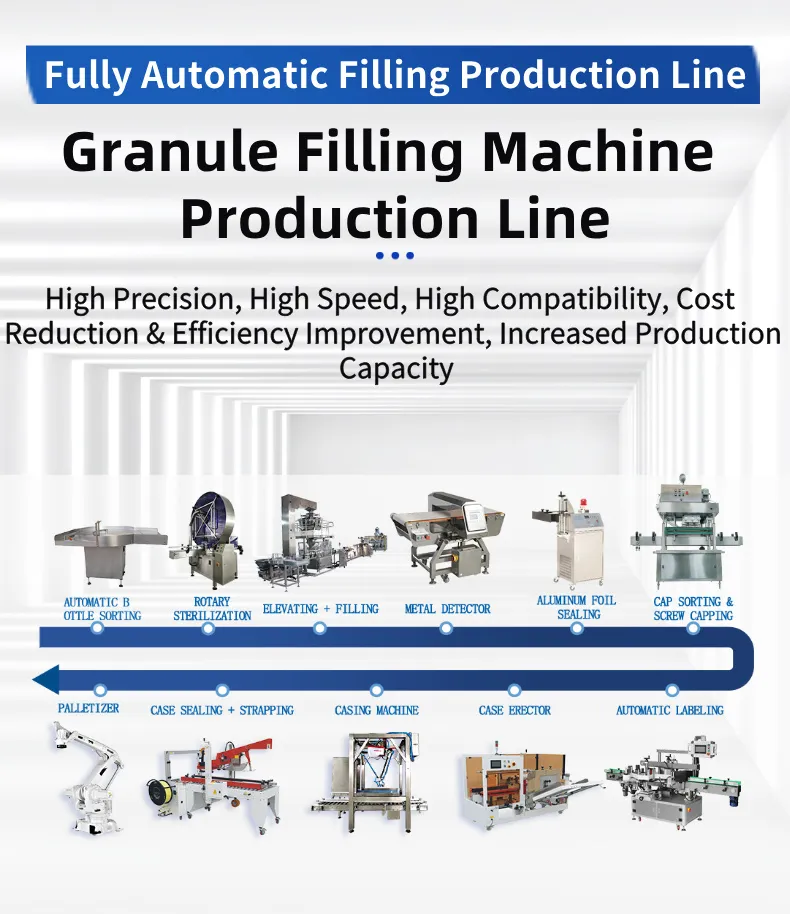

The whole production line starts with bottle unscrambling. Operators place empty bottles at the bottle unscrambler station, and the unscrambling unit conveys empty cans in order. Empty cans are transported to the filling station, where the oatmeal dosing filler completes quantitative feeding and filling of granule materials. After filling, cans can go through bottle mouth dust removal to clear oatmeal debris adhering to can mouths. An automatic desiccant sachet dispensing station can be set afterwards to dispense desiccants as required. Cans are then conveyed to the automatic soft capping station for capping. Capped cans flow to the coding station for printing of production date and batch information. Products pass re‑inspection by the weight sorter to reject items out of standard weight range. Qualified products are delivered to the finished product collection workbench for gathering, and collected finished goods are further conveyed to the downstream palletizing station for stacking, forming a continuous automated canning production line.

IV. Application Scenarios

This nut oatmeal filler is widely used in meal replacement food factories, intensive grain processing enterprises and leisure nut food processing plants. It undertakes canning production of instant oatmeal, mixed nut oatmeal, grain crisps and coarse grain meal replacement granules. It applies to various order types including e‑commerce retail canned products, supermarket circulating canned food and private‑label OEM grain granule products. It supports production switching among multiple can specifications and meets flexible production demands for multiple SKUs.

V. Common Industry Pain Points and Solutions

Customer Pain Points

1. Nut oatmeal is a mixed granule product; nuts and oatmeal differ in specific gravity, leading to large filling weight fluctuation and high material loss;

2. Numerous product SKUs and frequent can specification changes result in long commissioning time for equipment model switching;

3. Residual oatmeal powder at can mouths after filling impairs capping sealing and appearance;

4. Individual equipment on the production line runs independently, with process transfer relying on manual handling and limited efficiency;

5. Lack of re‑inspection for finished products allows off‑weight products to enter the market and increases after‑sales communication costs.

Corresponding Solutions

Build an automatic oatmeal filling line with Guangzhou Marchi MCGZ‑JZ oatmeal dosing filler. Optimize the feeding structure for mixed granules such as nut oatmeal to stabilize filling accuracy; equip quickly replaceable customized moulds to shorten commissioning time for can switching; optionally adopt the bottle mouth dust removal device to clear floating dust at can mouths; implement a full‑line linkage scheme to connect bottle unscrambling, filling, sachet dispensing, capping, coding and weight checking as well as finished product collection, reducing manual transfer; deploy a weight sorter for on‑line re‑inspection to screen out off‑weight products and lower the risk of nonconforming goods outflow. Enterprises can flexibly select auxiliary units according to their capacity budget and workshop layout to build a nut oatmeal filling production line matching their own production scale.
