Equipment Introduction：

This series of packaging machines can complete weighing and filling operations. Due to its unique design, it is especially suitable for packaging powders and granular materials with good flowability or extremely poor flowability, such as veterinary medicine, flour, cocoa powder, solid beverages, white granulated sugar, cotton sugar, monosodium glutamate, glucose, solid pharmaceuticals, powdered additives, toner, talcum powder, pesticides, dyes, flavors and fragrances, etc.

1.Full stainless steel structure; modular or open-type transparent hopper, easy to disassemble and clean without tools.

2.Servo motor and servo drive control the screw.

3.PLC control with touch screen human–machine interface, easy to operate.

4.Designed with weighing feedback specific-gravity tracking, overcoming weight variation caused by changes in material density.

5.Product parameter recipes can be stored for later use, supporting up to 10 recipes.

6.By replacing screw accessories, it can adapt to various materials ranging from ultra-fine powder to small granules.

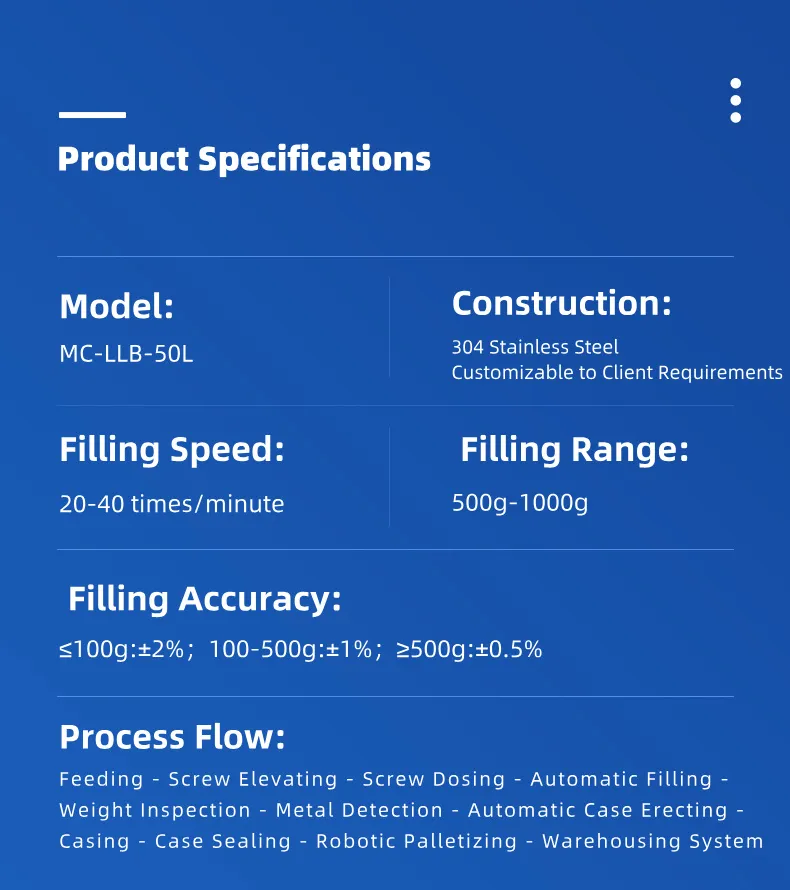

Equipment Parameters：

Model：MC-LLB-50L
Hopper：Modular transparent hopper 50L
Filling Weight：500g–1000g (for 50–100g, an additional small screw is required)
Filling Accuracy：≤100g: ±2%；100–500g: ±1%；≥500g: ±0.5%
Filling Speed：20–40 times/min
Power Supply：3P AC208–415V 50/60Hz
Total Power：3kW
Machine Weight：260kg
