Maichi is a professional manufacturer of fully automatic vertical liquid packaging machines. Customized one-to-one solutions can be provided according to different material characteristics to solve packaging accuracy issues. Complete plant solution design is available, with support for non-standard customization. With 26 years of experience in the packaging industry, Maichi helps production enterprises achieve stable production and increase capacity.
create_time：2026-01-09 16:40
Last Updated：2026-09-19 15:50

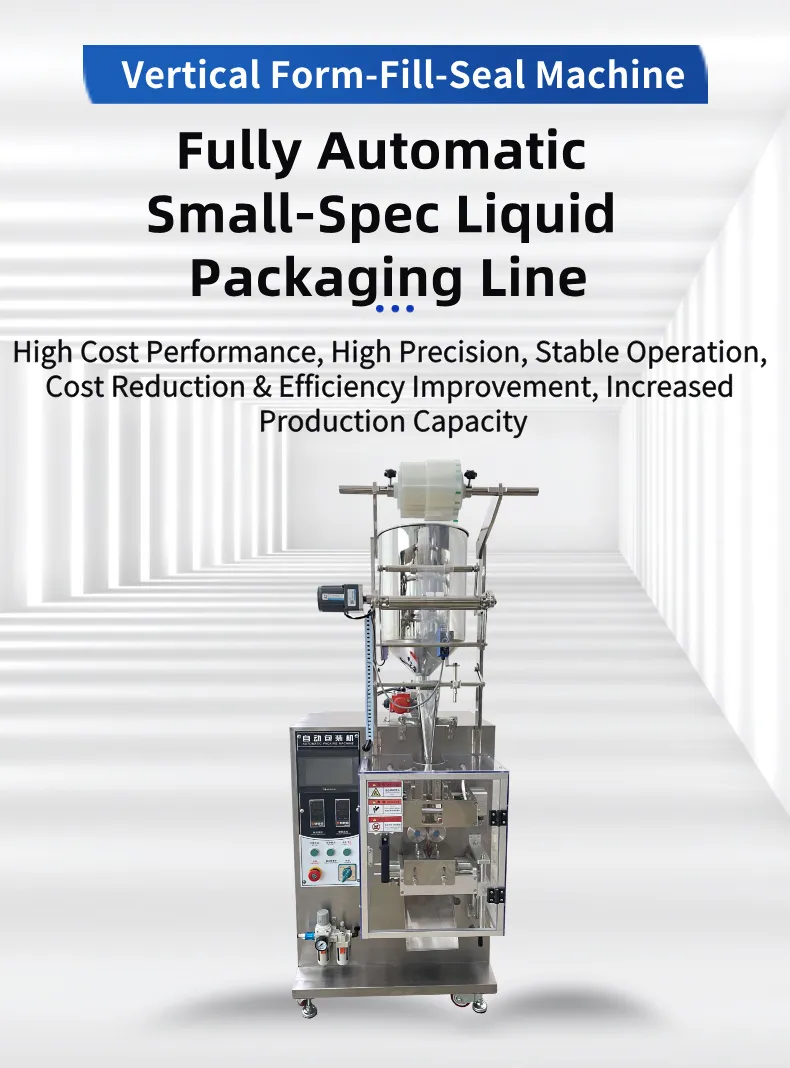

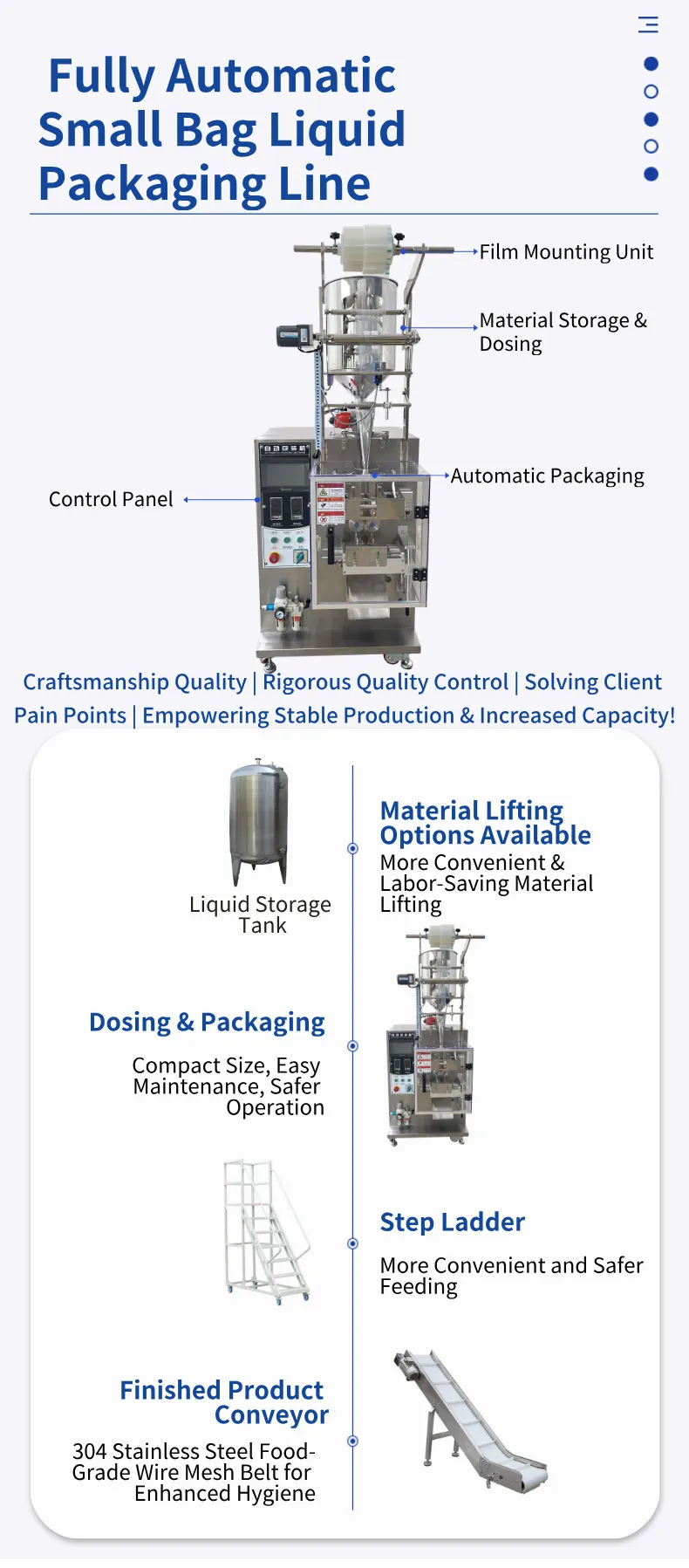

Equipment Introduction:
1.Can automatically complete bag pulling, bag forming, filling, weighing, sealing, cutting, counting, hot stamping date coding, and product output in one fully automated process.
2.Imported PLC control system with Chinese and English color touch screen display; required parameters can be set in the display unit to achieve optimal packaging results.
3.High accuracy; bag length can be changed simply by adjusting parameters, with photoelectric control to ensure accuracy and obtain complete trademark patterns.
4.The overall machine frame is made of stainless steel with fine surface finishing, smooth, easy to clean, and suitable for disinfection.
5.Parts in contact with materials are made of high-quality stainless steel and comply with GMP requirements. Related components adopt a modular design, making them easy to disassemble and assemble with strong versatility.
6.Optional: thermal transfer coding machine, ribbon coding machine, feeding machine, finished product conveyor.

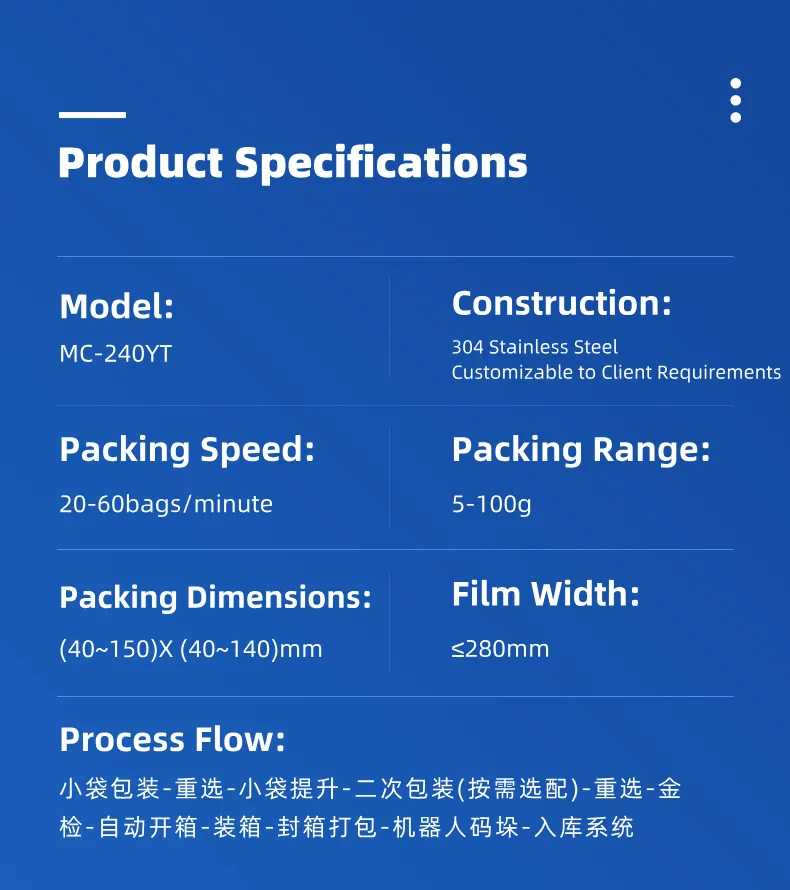

Equipment Parameters:
Equipment Model: MC-240YT
Packaging Speed: 20-60 bags/minute
Packaging Range: 5-100 g
Packaging Film Width: ≤280 mm
Bag Size: L40-150 mm, W40-140 mm

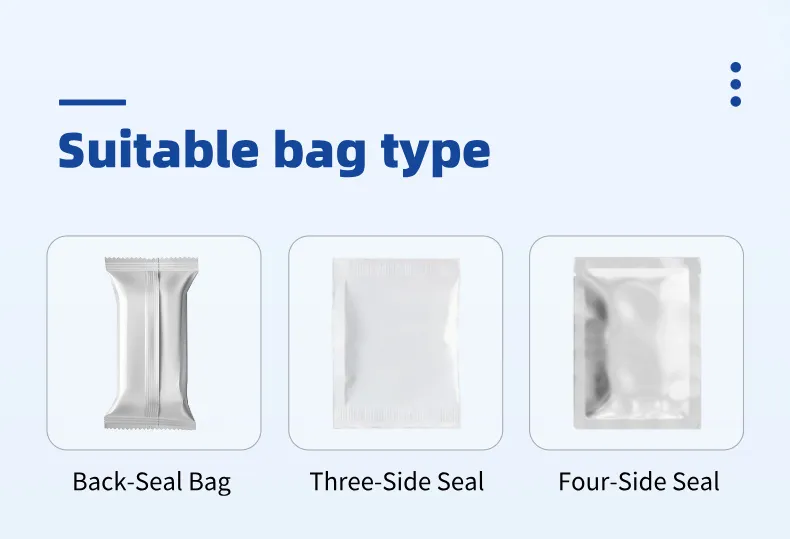

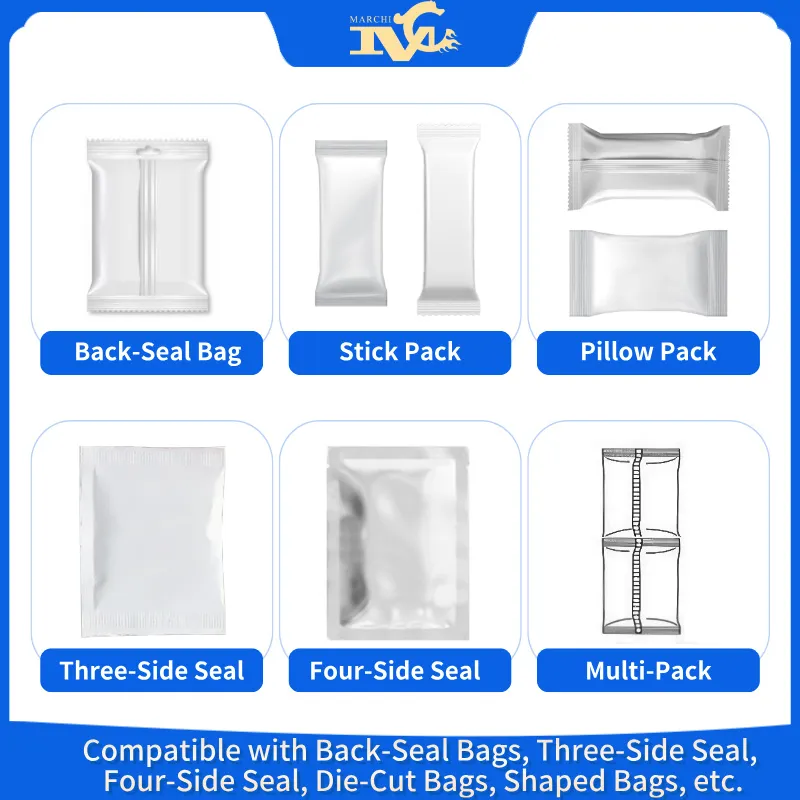

Sealing Type: Back seal / Three-side seal / Four-side seal / Special-shaped bag
Sealing Pattern: Serrated / Straight / Patterned / Mesh
Power Supply: 220V/380V 50HZ/60HZ, 1350W
Packaging Materials: Laminated film / laminated paper / polyethylene, nylon/polyethylene, polyester/aluminum foil/polyethylene, tea filter paper, etc.
Air Consumption: 0.8 MPa 0.4 m³/min
Cutting Knife Type: Flat knife / Serrated knife / Rounded knife / Rotary knife
Machine Weight: Approx. 180 KG
Machine Dimensions: L900W800H1900 (mm)
