Equipment Introduction:

This equipment adopts microcomputer PLC automatic control, human-machine interface, fully enclosed, and submerged filling. It has high metering accuracy, a wide filling range, compact structure, smooth operation, and is suitable for filling various shaped containers. The liquid cylinder and its pipeline are easy to disassemble and clean, fast and convenient. All parts in contact with the material are made of high-quality stainless steel. The entire machine is aesthetically pleasing and meets GMP standards.

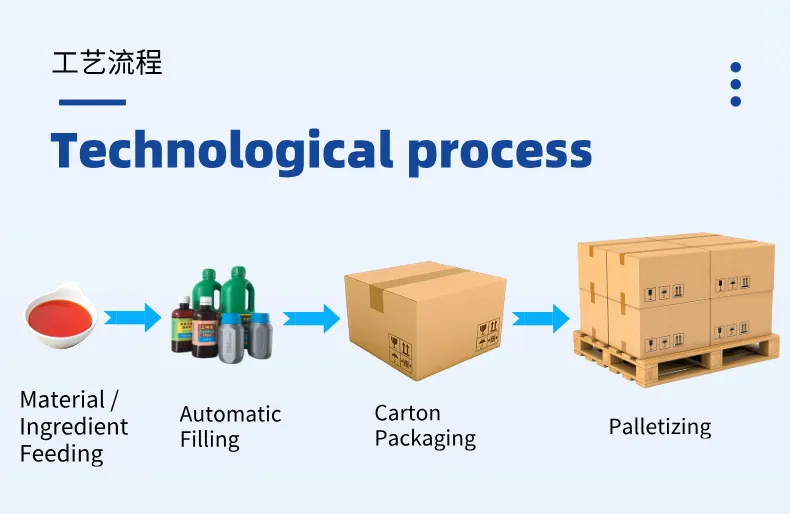

Process Flow:

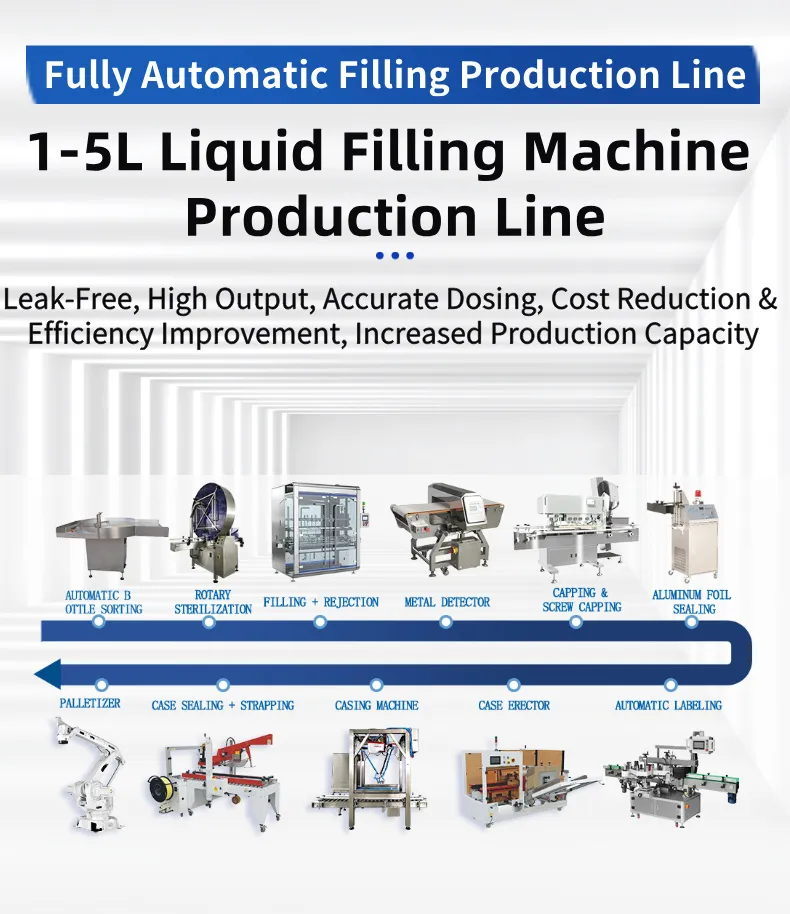

Automatic bottle sorting → Sterilization → Filling → Re-selection → Metal detection → Capping → Aluminum foil sealing → Automatic labeling → Unboxing → Boxing → Sealing and packaging → Robotic palletizing → Warehouse system

Application Range:

Food category (edible oil, soy sauce, vinegar, fruit juice, beverages, dairy products, sauces, honey); daily chemicals (laundry liquid, shampoo, body wash, hand wash, skincare products, disinfectants); pharmaceuticals (oral liquids, disinfectants, medical reagents, traditional Chinese medicine decoction); chemicals (lubricating oil, antifreeze, paint, coatings, chemical reagents, preservatives), suitable for different viscosities and various filling specifications.

Equipment Parameters:

Model: MC-ZX-8T

Filling heads: 8

Applicable bottle types: Round bottles: H 100-320, Φ100-180; Square bottles: L 100-200, W:40-80, H 150-300; Bottle mouth diameter: ≤30, ≥30 customizable

Production capacity (bottles/hour): 1L: 2200; 5L: 500

Filling range: 1-5L: ±0.5%

Equipment dimensions (mm): 2000×1100×2200

Power supply: AC220V, 50Hz 3kw
