Equipment Introduction：

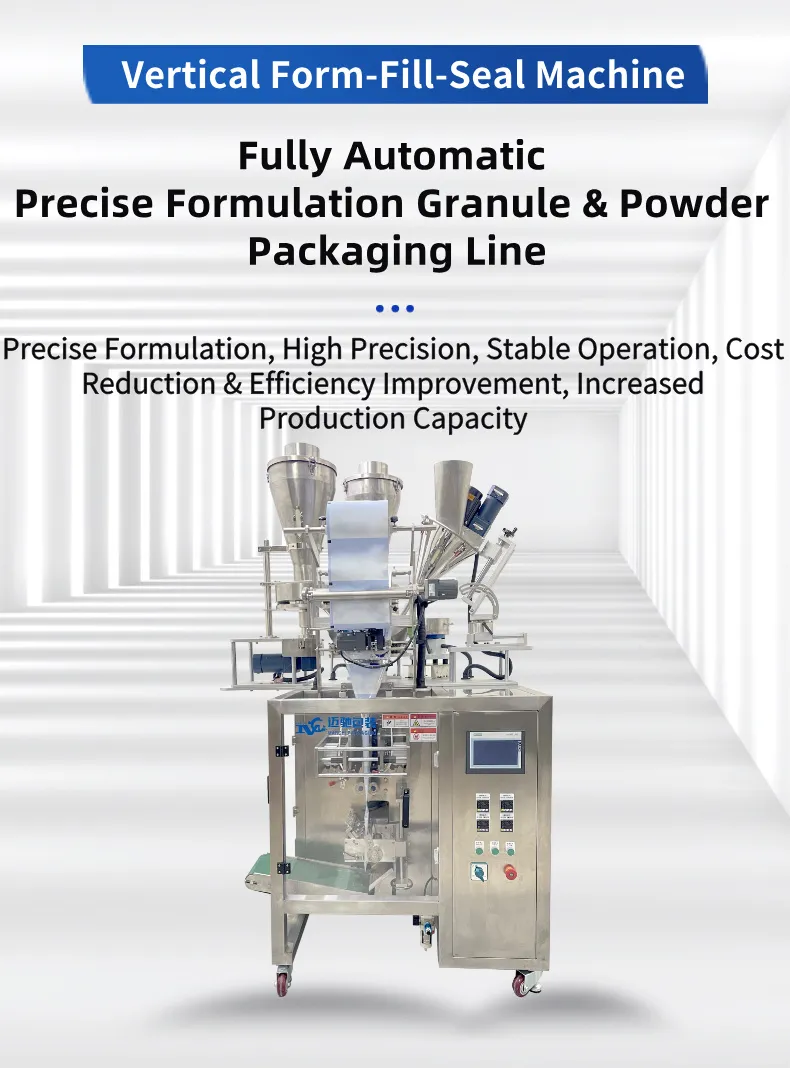

1.Fully automatic granule three-side seal packaging machine can complete automatic bag feeding, bag forming, filling, weighing, sealing, cutting, counting, coding, and product output in one integrated automated process.

2.Stainless steel body with aesthetically simple and clean design.

3.Chinese/English touchscreen control system, easy and convenient to operate.

4.Imported electrical components, high performance and stable operation.

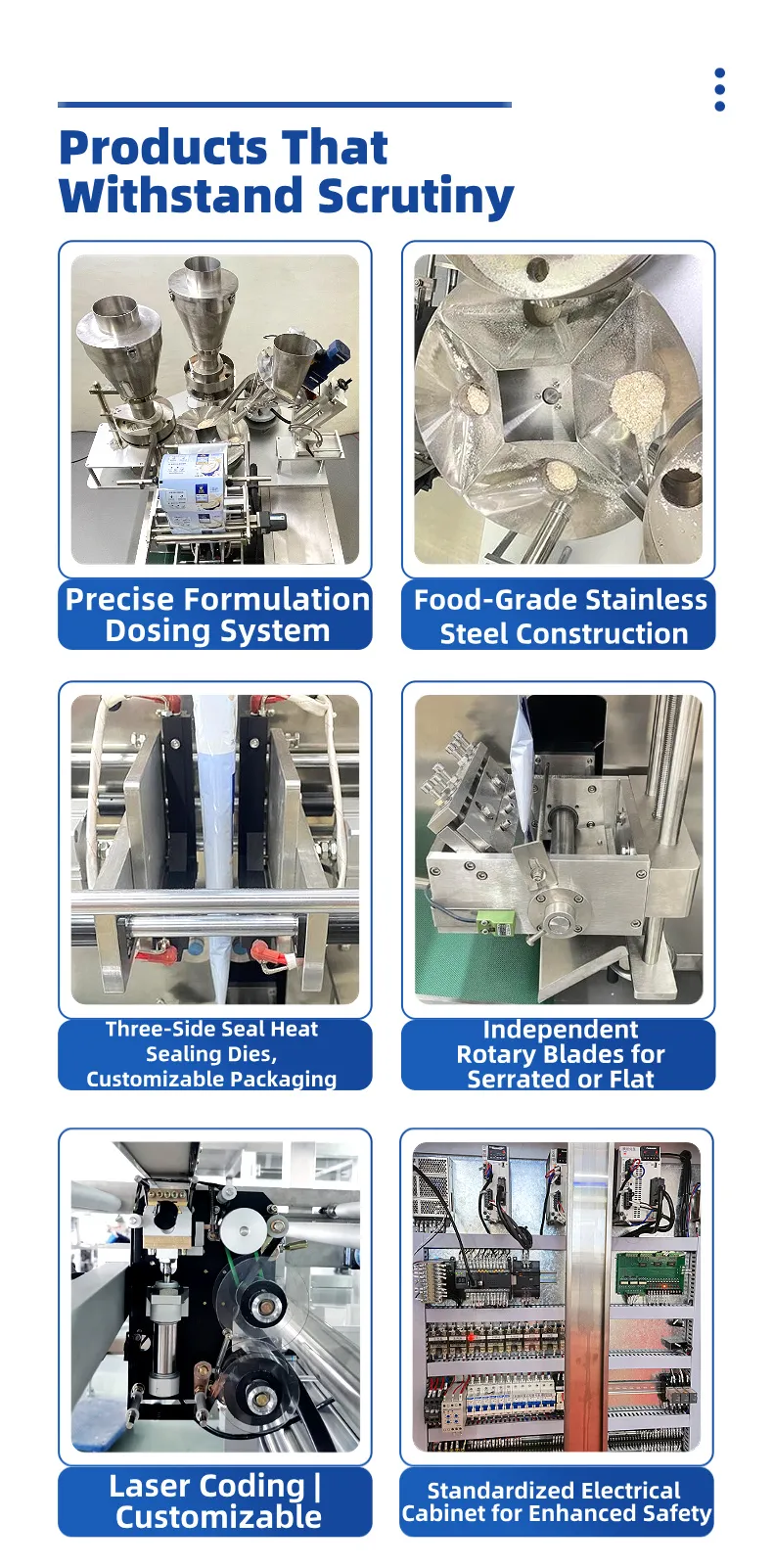

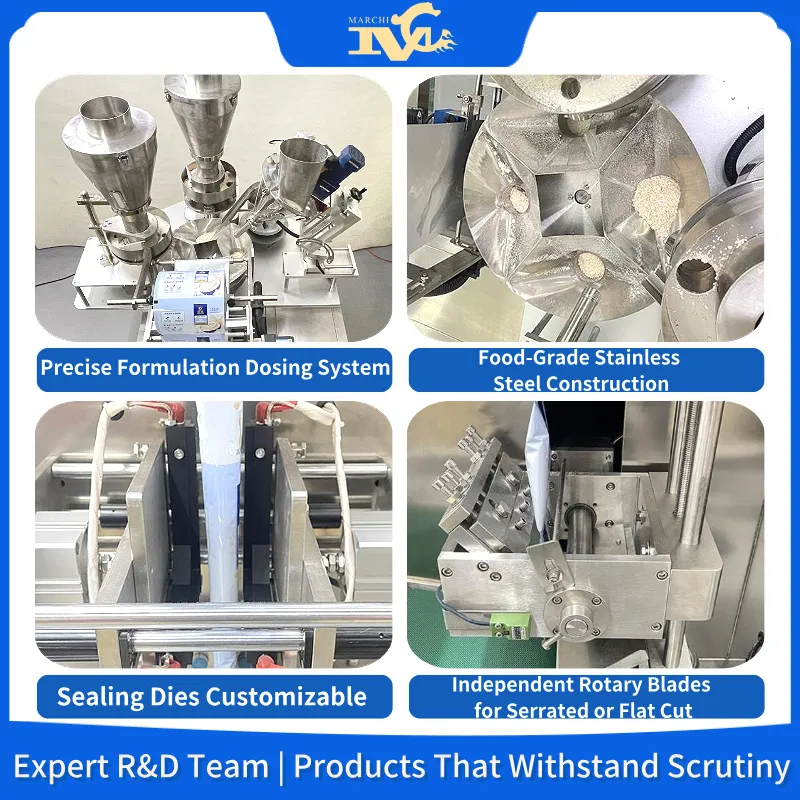

5.High-performance precision sealing molds paired with high-quality heating tubes for effective heat sealing.

6.Seal patterns are firm and clear. Custom seal patterns can be designed to enhance overall product appearance.

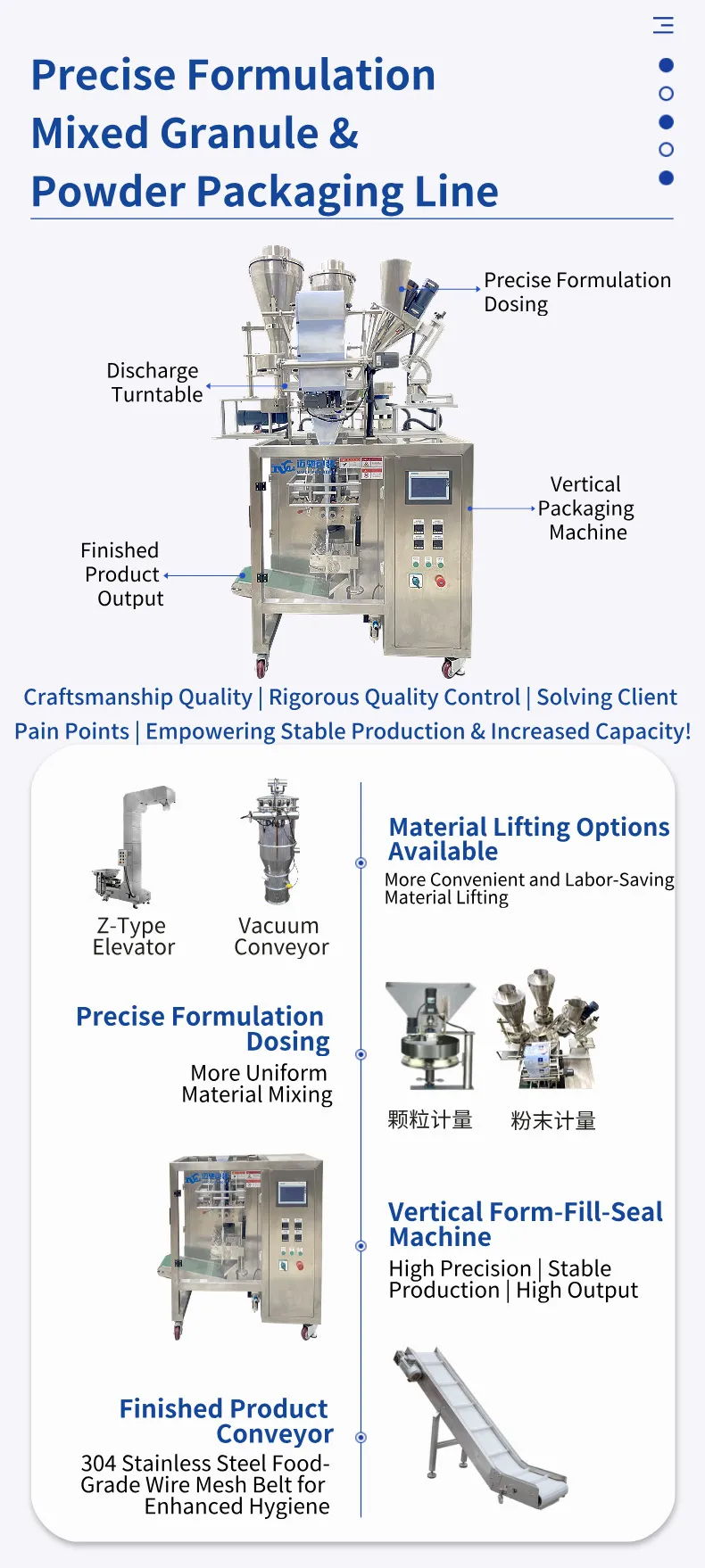

7.Optional equipment according to material characteristics: vacuum feeder, coder, inkjet printer, finished product conveyor, weight checker, etc.

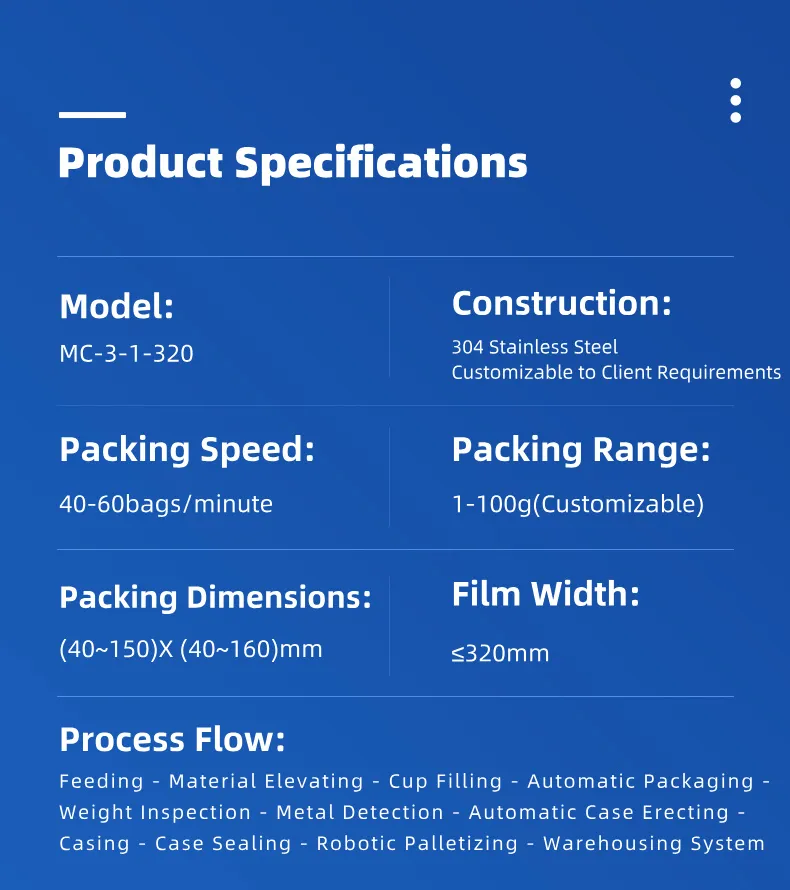

Equipment Parameters：

Model：MC-3-1-320
Packaging Speed：40–60 bags/min (depending on packaging weight)
Measuring Range：1–100g (measuring cup dosing, customizable per client requirements)
Film Width：≤320mm (can be customized according to actual size)
Bag Size：L40–150mm, W40–160mm
Sealing Type：Three-side seal (customizable: four-side seal, back seal, special-shaped bag, etc.)
Seal Pattern：Mesh pattern (customizable: straight, decorative, etc.)
Power Supply：220V/380V 50Hz/60Hz, 3000W
Machine Weight：約500KG
Packaging Materials：Composite film / Composite paper / PE–nylon / PE–polyester / Aluminum foil / PE / Tea filter paper, etc.
Machine Dimensions(L×W×H)：1500×1400×2100 mm
Cutter Type：Flat knife (customizable: serrated knife, round corner knife)
Air Consumption：0.6–0.8MPa 0.4m³/min
