Equipment Introduction：

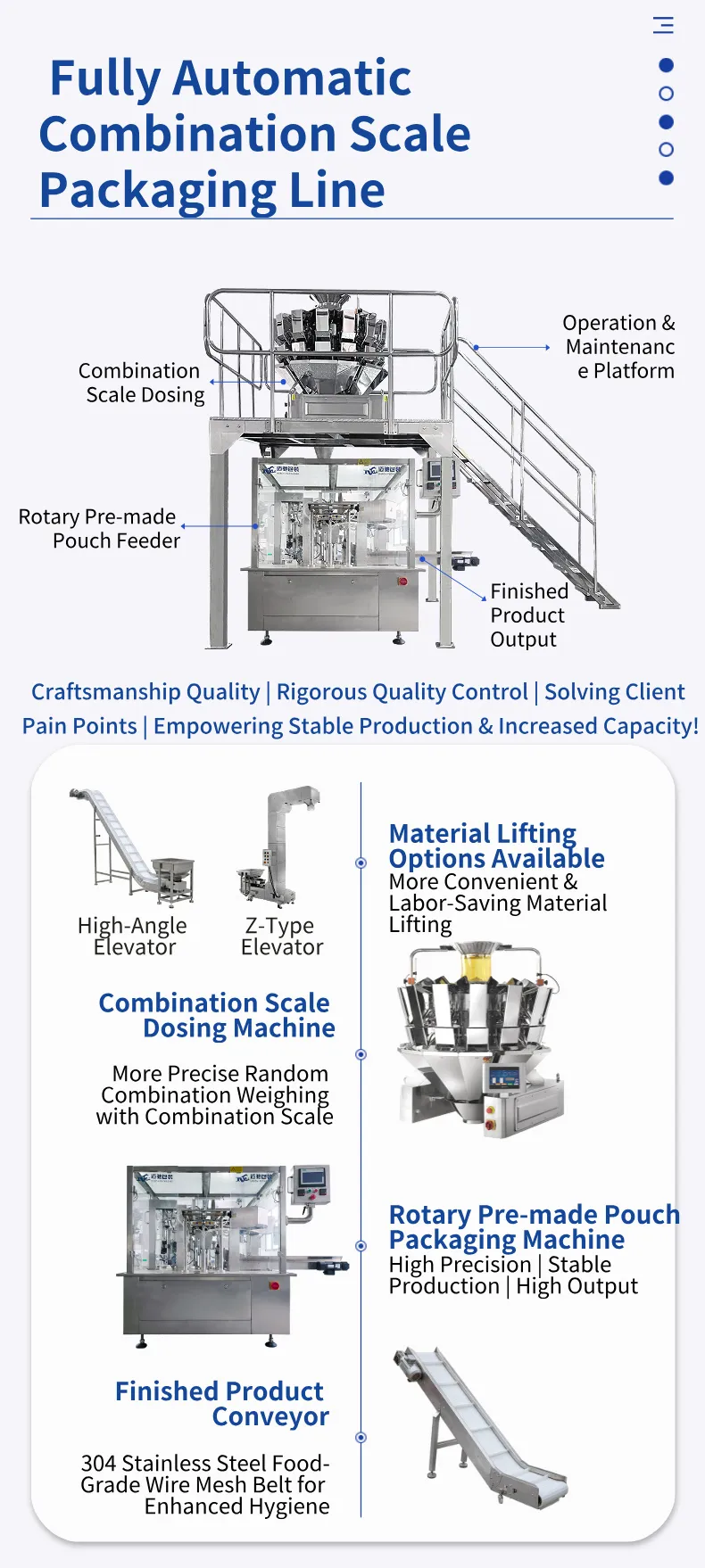

1.Packaging Process: Bag Loading – Coding – Zipper Opening – Bag Opening – Metered Filling – Cleaning – Heat Sealing – Bag Shaping

2.Easy Operation: PLC control with human-machine interface

3.Convenient Bag Width Adjustment: Motor-controlled, allowing synchronized adjustment of all grippers with a single button

4.No Bag or Incomplete Bag Opening: No filling; Unopened Bag: No discharge; No Bag or No Filling: No sealing

5.Optional Alarms: Door Open, No Ribbon, Insufficient Air Pressure, Abnormal Seal Temperature

6.Material Contact Parts: Made of 304/316 stainless steel or food-grade plastic, meeting hygiene standards

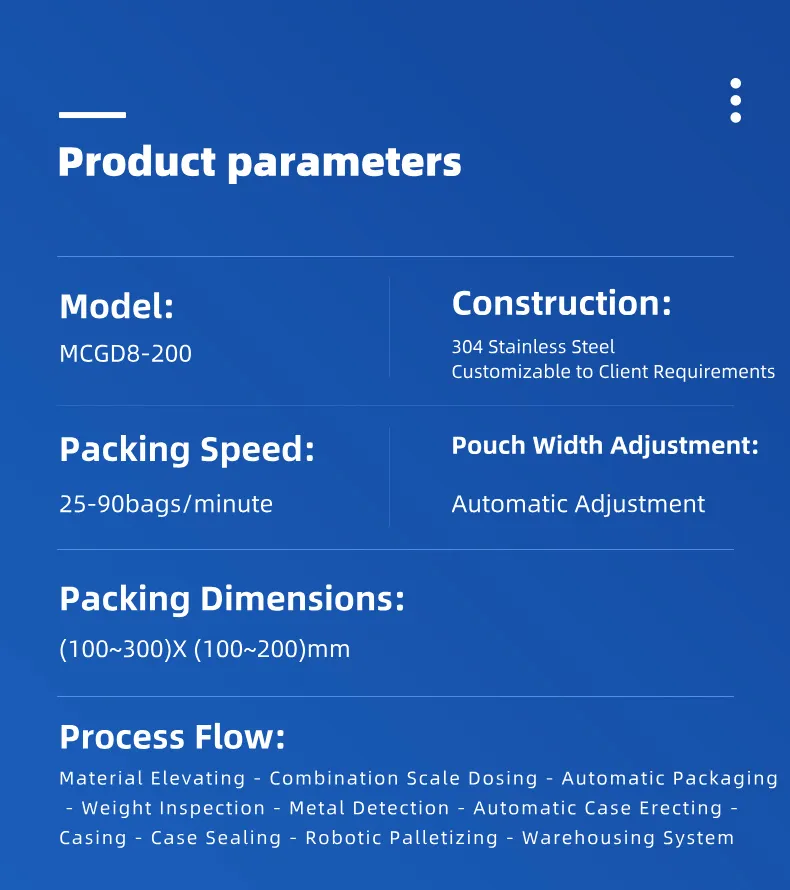

Equipment Parameters：

Model：MCGD8-200
Bag Size L×W (mm)：(100–300) × (100–200)
Packaging Speed (bags/min)：25–90
Applicable Materials：PE composite film, aluminum foil film, metallized film, and other composite materials

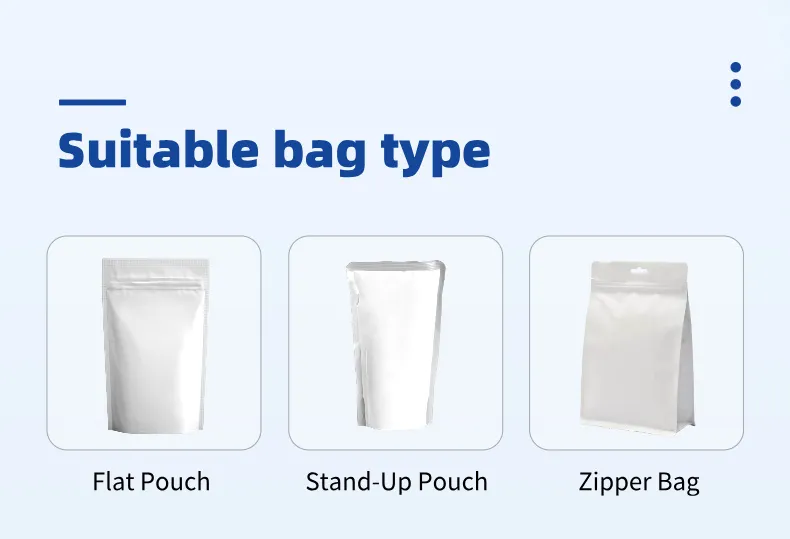

Applicable Bag Types：Stand-up bag, zipper bag, angled spout stand-up bag, flat bag
Bag Width Adjustment：Automatic
