Guangzhou Maichi, as a seasoned manufacturer of ton bag weighing packaging machinery, has been deeply engaged in the export of packaging machinery for nearly twenty years. We focus on the core needs of global bulk material packaging and proudly launch a series of high-quality ton bag packaging machines and ton bag weighing products. With core advantages such as precise weighing, stability, durability, and strong adaptability for overseas markets, we solve the packaging challenges faced by overseas clients in industries such as chemicals, building materials, food, and mining. Our products have successfully been exported to more than 30 countries and regions, including Southeast Asia, the Middle East, Europe, America, and Africa. We have collaborated with well-known overseas clients, including chemical groups in Vietnam, building material companies in Indonesia, and mining companies in Germany, focusing on packaging scenarios for cement, plastic pellets, mineral powders, grains, and more. We provide customized and standardized export-level ton bag weighing packaging solutions for global customers.

Packaging Capabilities:

Our machines can package:

Cement, gypsum powder, mineral powder, fly ash, heavy calcium powder, talc powder, silica fume, quartz sand, bentonite, kaolin, zeolite powder, perlite, vermiculite, feldspar powder, calcite powder, dolomite powder, diatomaceous earth, barite powder, fluorite powder, mica powder, etc.

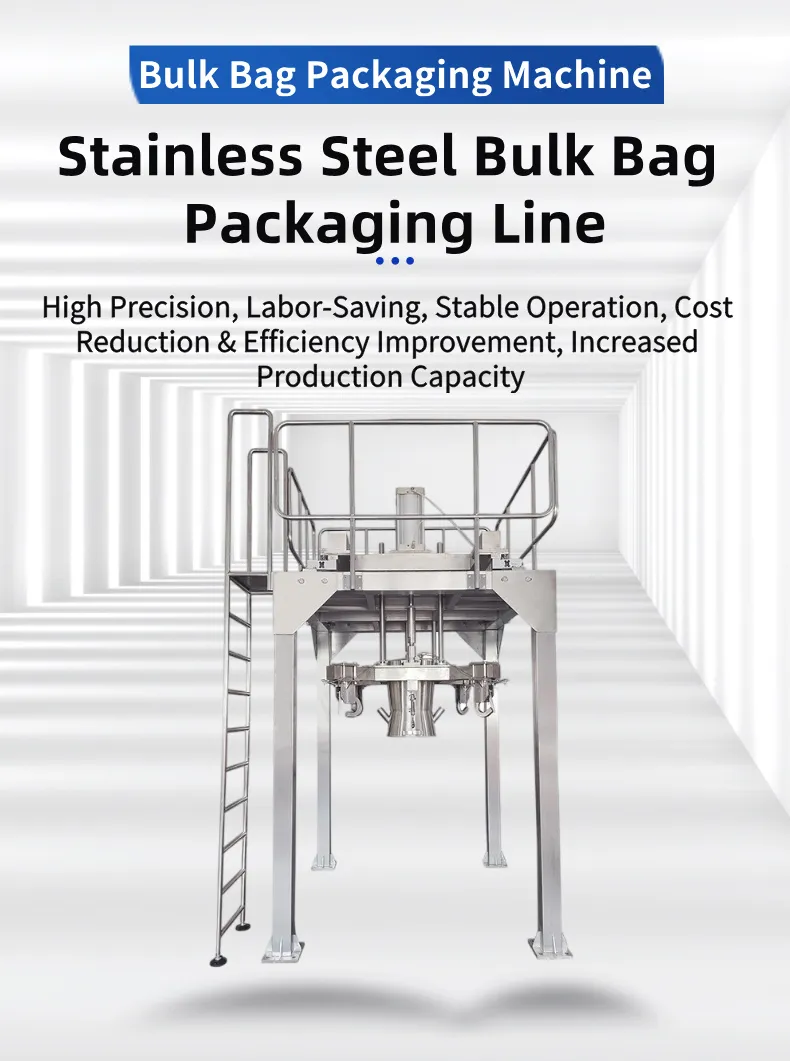

Equipment Overview:

The electronic packaging scale adopts a gross weight measurement method, with the bulk bag suspended on the weighing platform, allowing for rapid filling of materials into the bulk bag.

Main components include:

Feeding device

Weighing platform

Lifting mechanism

Bag hanging/unloading/gripping device

Air inflation/recovery pipeline

Steel structure frame

Feeding Device:

The feeding device features a dual-screw feeding structure that relies on the weight of the material for feeding. It allows easy control and independent adjustment of the feeding flow rate through variable frequency speed regulation. A butterfly valve is added at the single arc-shaped feeding door outlet to enhance controlled material output, preventing residual materials from dropping and affecting the packaging accuracy and environmental pollution. The specially designed pneumatic fork mechanism effectively prevents powder material from arching in the feeding area, further ensuring stable feeding.

Weighing Platform:

The weighing platform uses high-precision, long-term stability, and impact-resistant weighing sensors, complemented by a dedicated force transmission connection mechanism. It features multiple functions such as overload protection and limit stops, ensuring that 100% of the bag weight is transmitted to the weighing sensor without generating any directional forces, resulting in excellent mechanical auto-reset performance.

Lifting Mechanism:

The lifting mechanism is fixed on the weighing platform and includes a cylinder lift mechanism and four guiding mechanisms. Depending on the actual filling situation, the bag can be lifted and lowered several times during weighing to ensure optimal filling results. Once weighing is complete, the heavy bag is lowered to the ground or onto a pallet, changing the bag's upper suspended state to a bottom-supported state, facilitating the automatic release of the bag opening and the automatic disengagement of the lifting strap.

Bag Hanging/Unloading/Gripping Device:

The bag hanging/unloading/gripping device is fixed at the bottom of the cylinder of the lifting mechanism and exerts force on the weighing platform. The entire device can adapt to changes in the size of packaging bags with a nominal volume of 1200 to 1400 liters. It features manual suspension of the lifting strap for empty bags, pneumatic clamping of the bag opening, and automatic release of the bag opening and disengagement of the lifting strap when the heavy bag is dropped.
