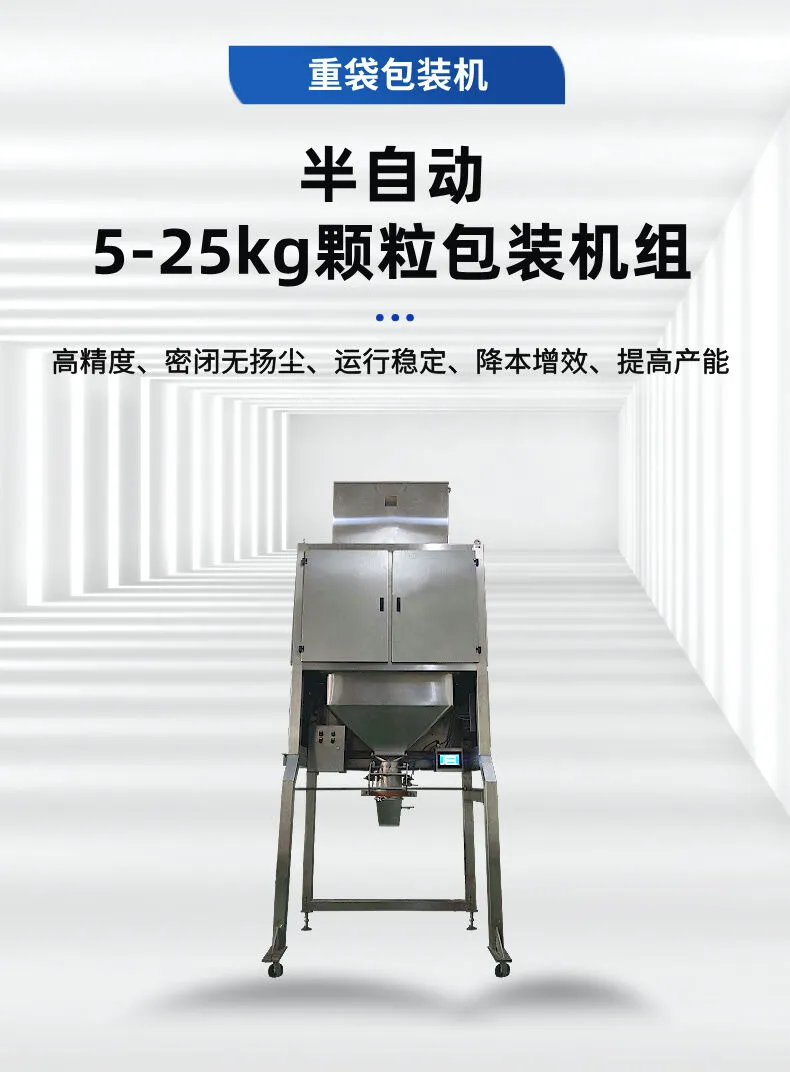

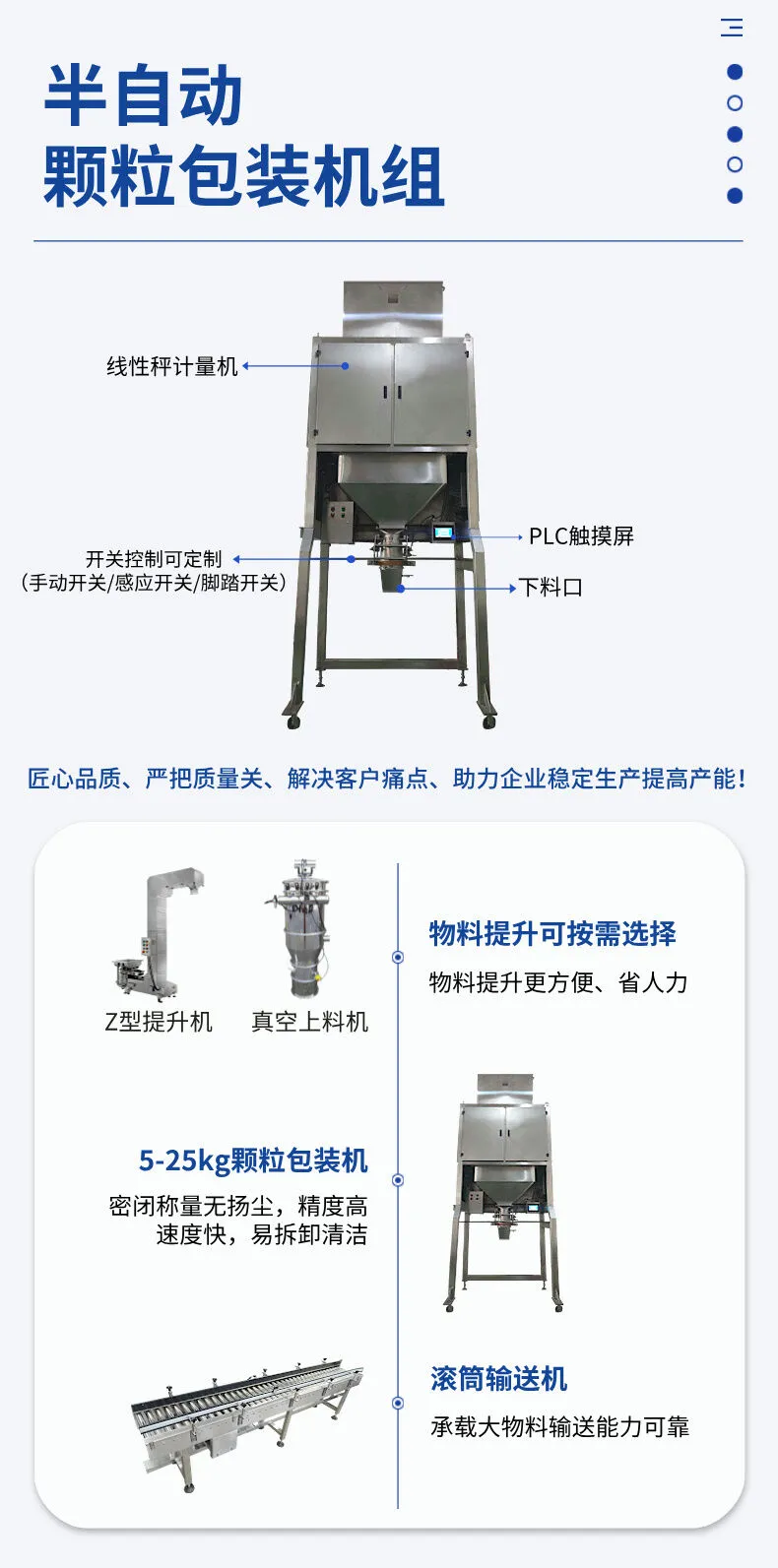

Equipment Introduction:

1.Manual bag feeding, pneumatic bag clamping, weighing and metering

2.Automatically completes material packaging with PLC control, integrating weight display, packaging sequence, process interlocking, and fault alarm functions. Independent packaging weight input and weighing display windows are provided. The display window adopts high-brightness LED display, showing packaging weight, cumulative output, and bag count in real time

3.Independent weighing system with weighing accuracy of 0.2–0.5%, high speed

4.During packaging, materials do not cake or damage their original form; materials are not easy to remain inside the machine and are easy to clean

5.Suitable for weighing bulk materials. The weighing unit uses load cells with reliable performance. Fully stainless steel sealed body provides corrosion resistance and dust protection, meeting GMP, HACCP, and other production standards

Equipment Parameters:

Equipment Model: MCDZC-25K

Weighing Range (kg): 5–25

Weighing Speed (bags/min): 4–8

Accuracy Range: ±0.2–0.5%

Power Supply: 220V 50Hz 1.5KW

Working Air Pressure (MPa): 0.5–0.8

Overall Dimensions (mm): 1290×860×3656
