Equipment Introduction：

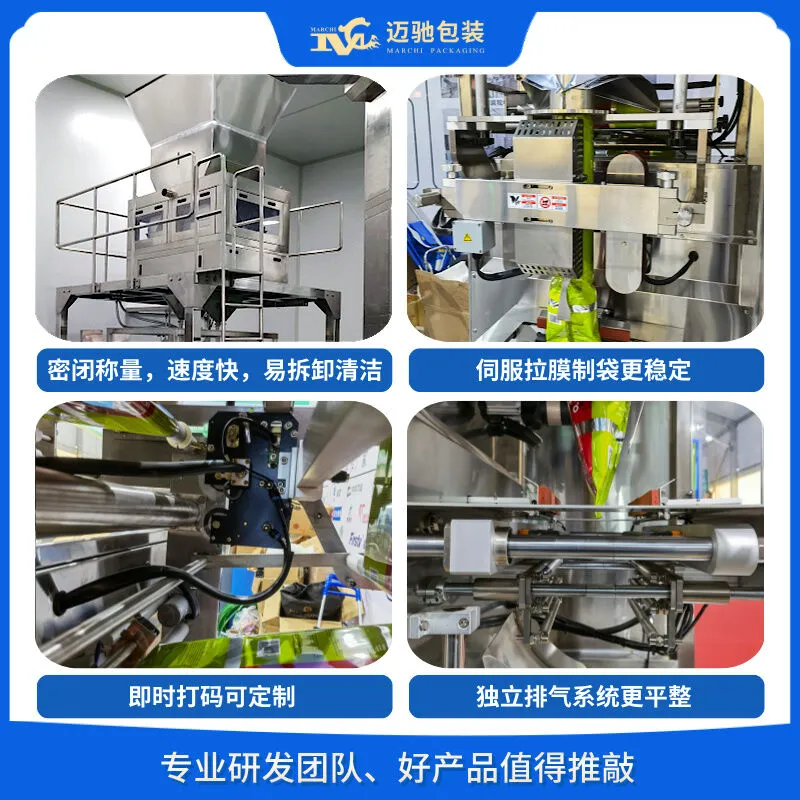

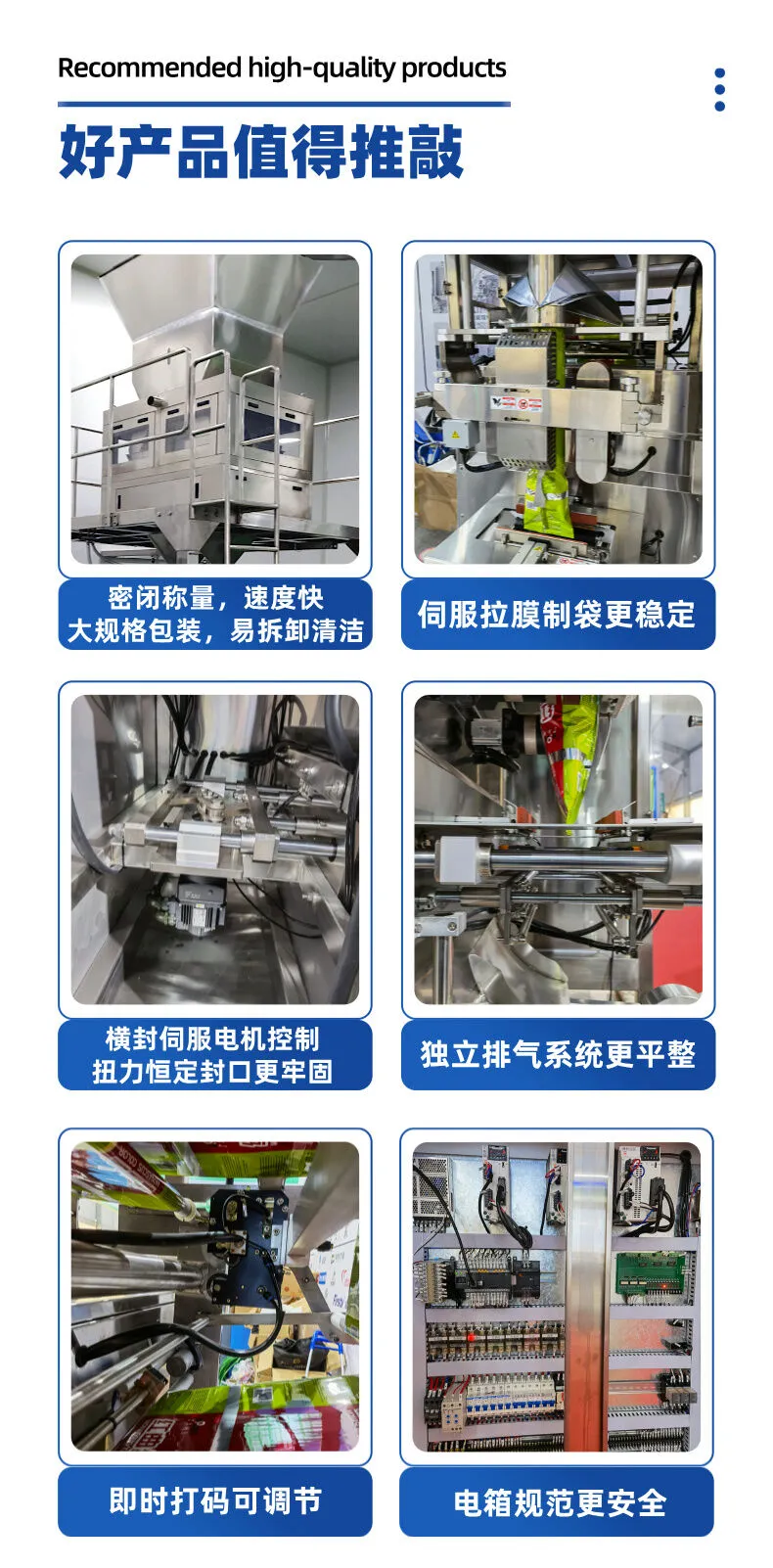

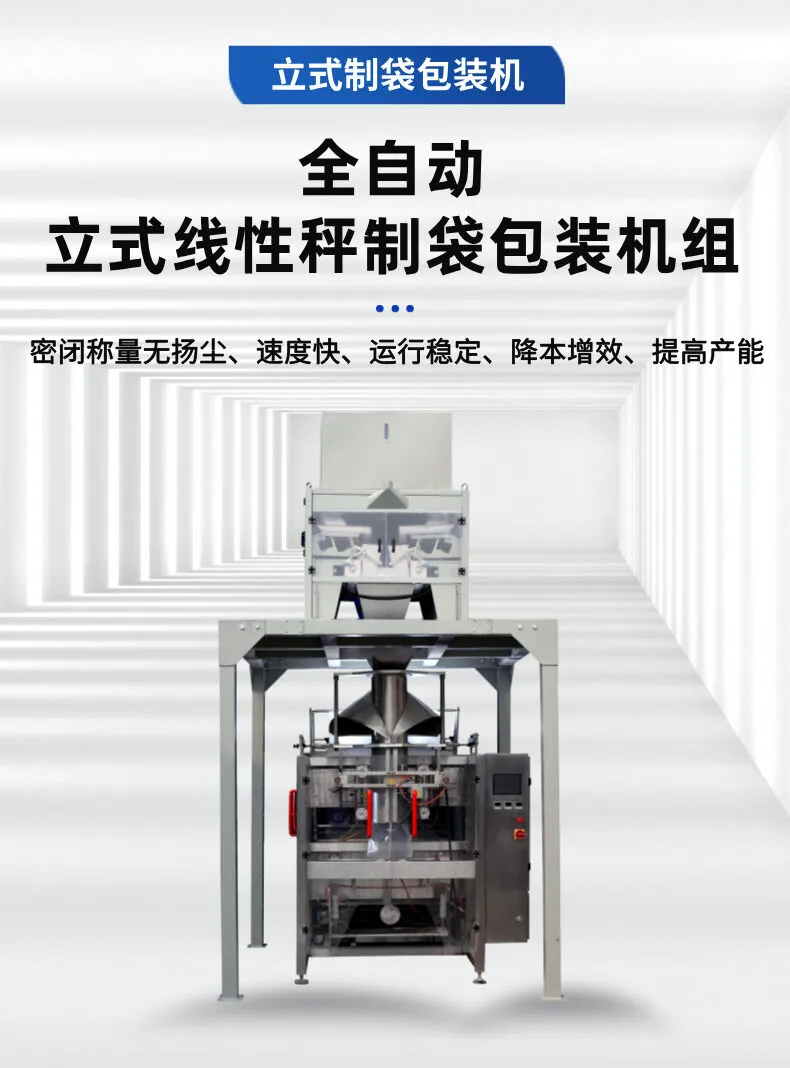

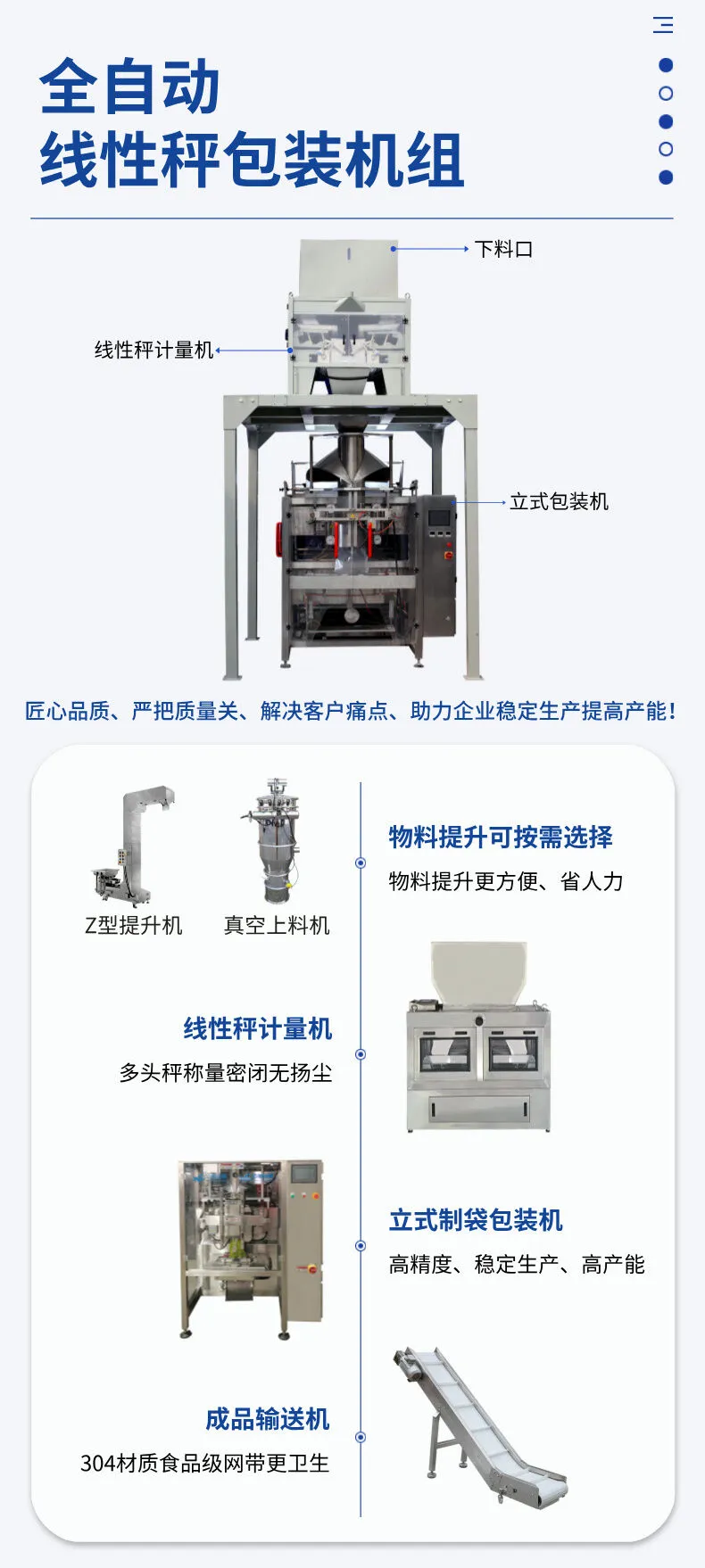

This unit consists of a 5000D vertical filling packaging machine, a linear scale, and a bucket elevator. It integrates weighing, bag forming, filling, sealing, coding, punching, and counting into one system. The machine uses a three-servo system for film pulling and sealing, ensuring stable and reliable operation. All control components are from internationally renowned brands, providing reliable performance. The advanced design concept guarantees stable operation, simple operation, and easy maintenance.

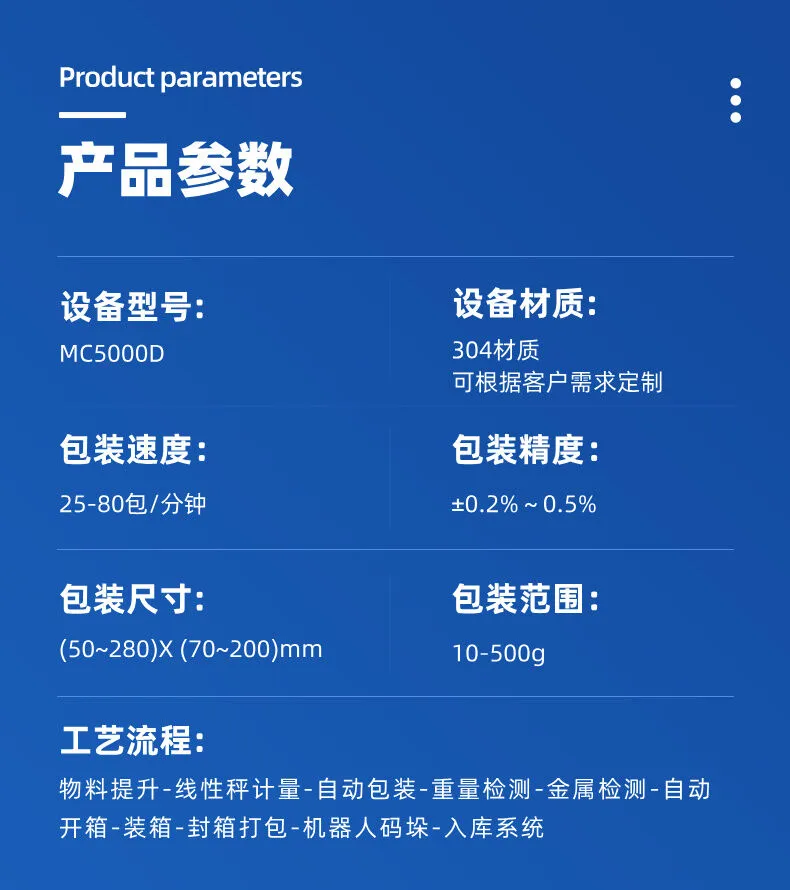

Equipment Parameters：

Model：MC5000D
Bag Size Range L×W (mm)：(50–280) × (70–200)
Available Bag Types：Pillow bag, gusseted bag, perforated bag, handle bag, box bag, etc.
Weighing Range (g)：10–500
Weighing Accuracy：±0.2%–0.5%
Packaging Speed (bags/min)：25–80
