Equipment Introduction：

Workflow: Container Feeding – Container Support – Vibration – Metered Filling – Weight Feedback – Supplementary Filling – Check Weighing & Over-limit Rejection – Container Discharge

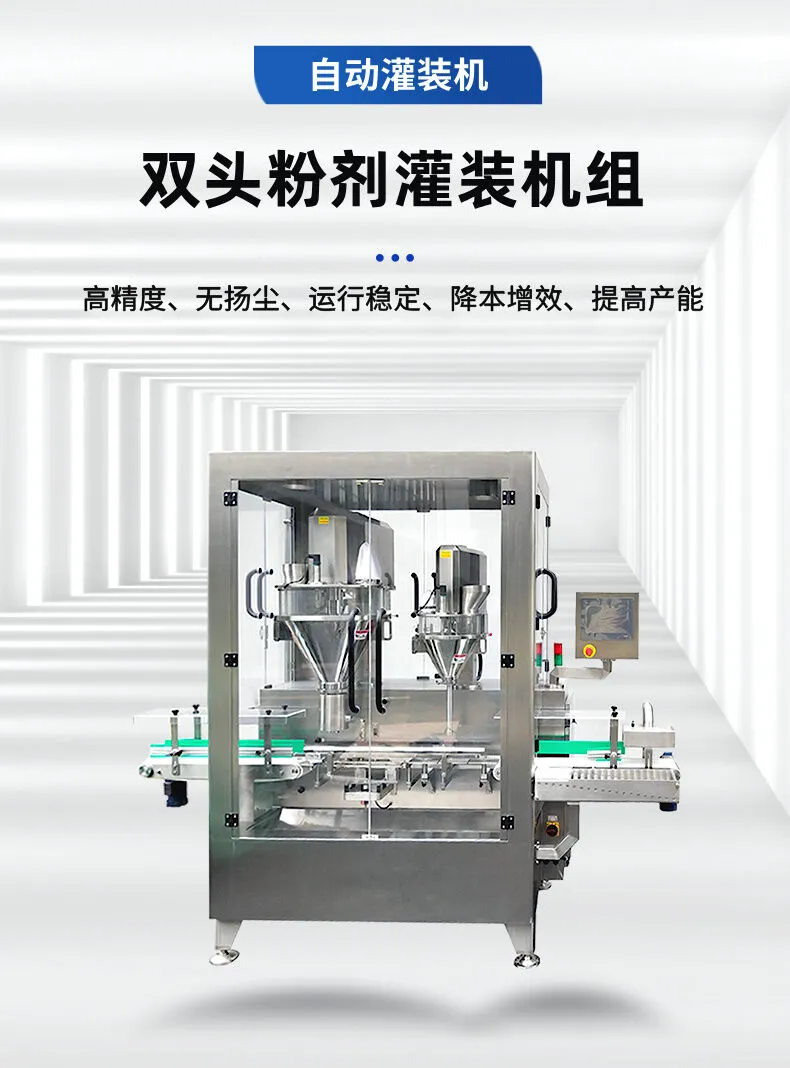

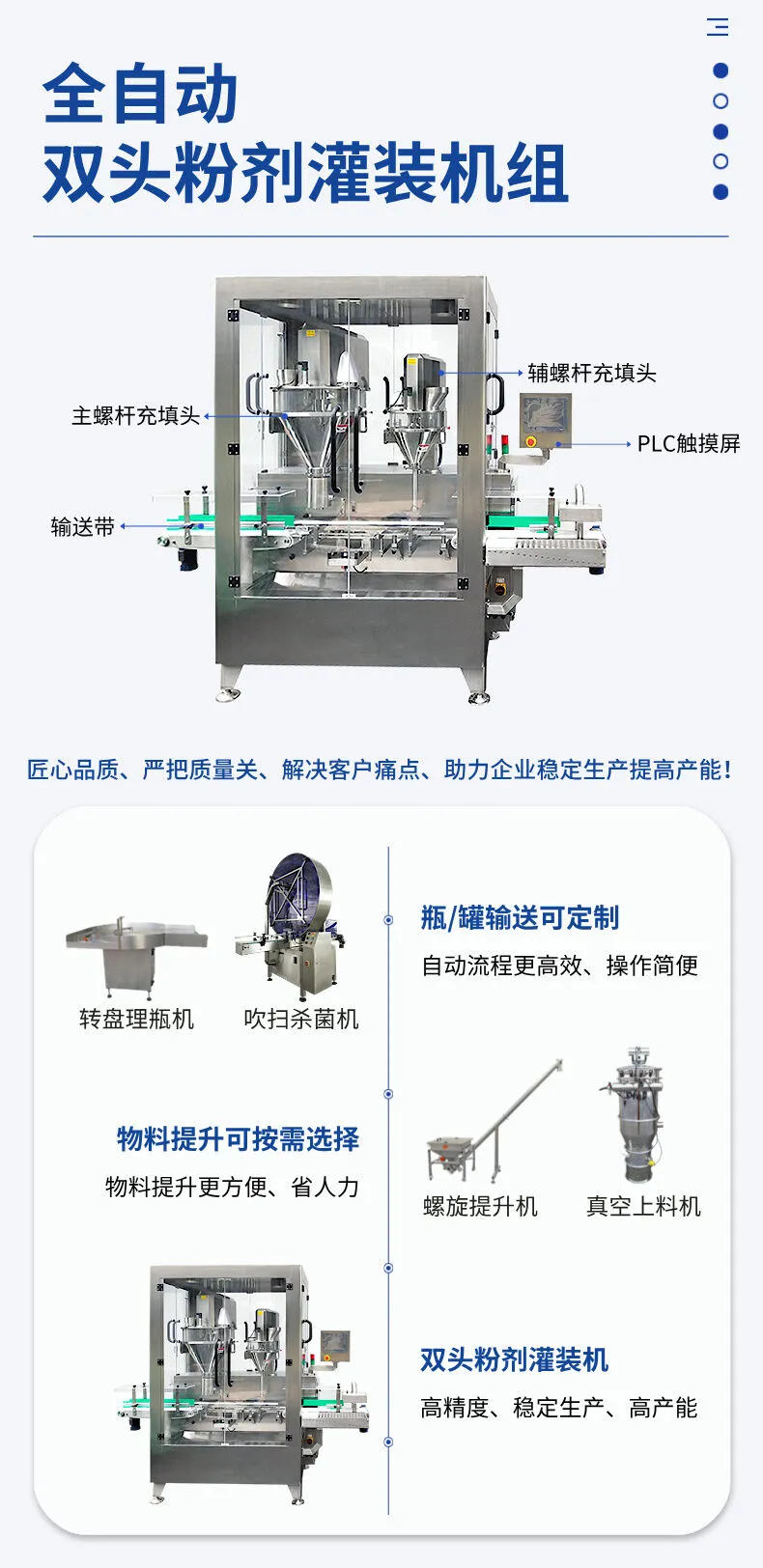

This equipment is a dual-station filling machine newly designed based on our long-term experience in powder can filling, abandoning the traditional rotary table feeding design. The single-row main-and-secondary dual-head filling system and feeding system ensure high-precision filling while eliminating the cleaning difficulties of the rotary table feeding system. It primarily completes high-precision metered filling and can be integrated with other equipment to form a complete can filling production line.

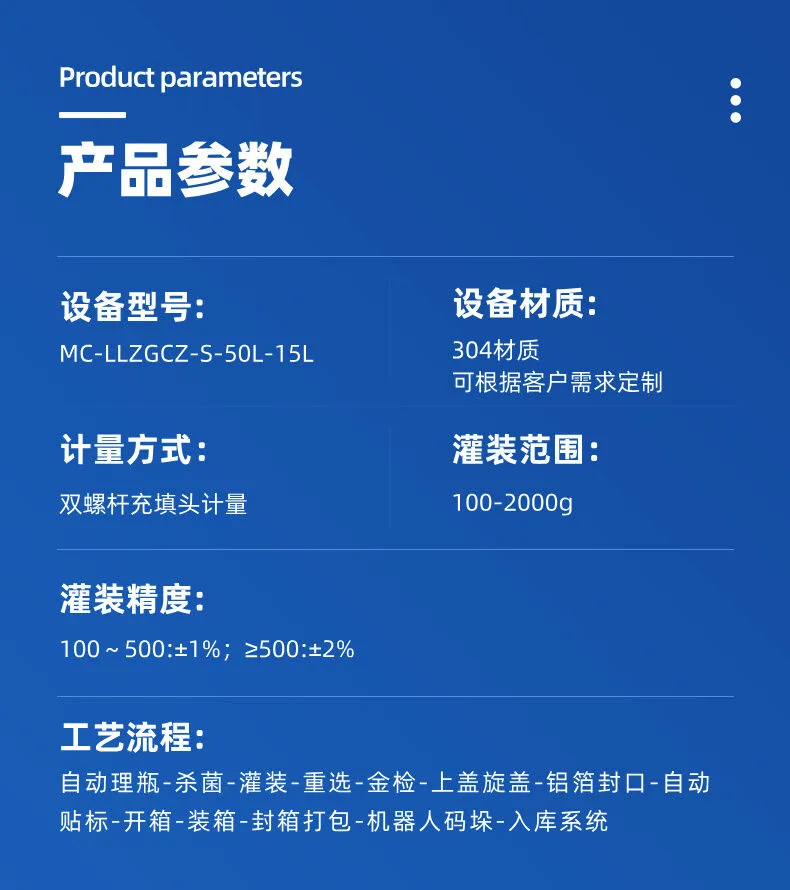

Equipment Parameters：

Model：MC-LLZGCZ-S-50L-15L
Measuring Method：Dual-screw filling heads
Filling Weight(g)：100–2000
Container Size(mm)：Φ60–135; H60–260
Filling Accuracy：100–500g: ±1%；≥500g: ±2%
Power Supply：3P AC208–415V 50/60Hz
Total Power(kW)：3.4
Machine Weight(kg)：450
Compressed Air：6kg/cm² 0.2m³/min
Machine Dimensions(mm)：2650×1040×2300
