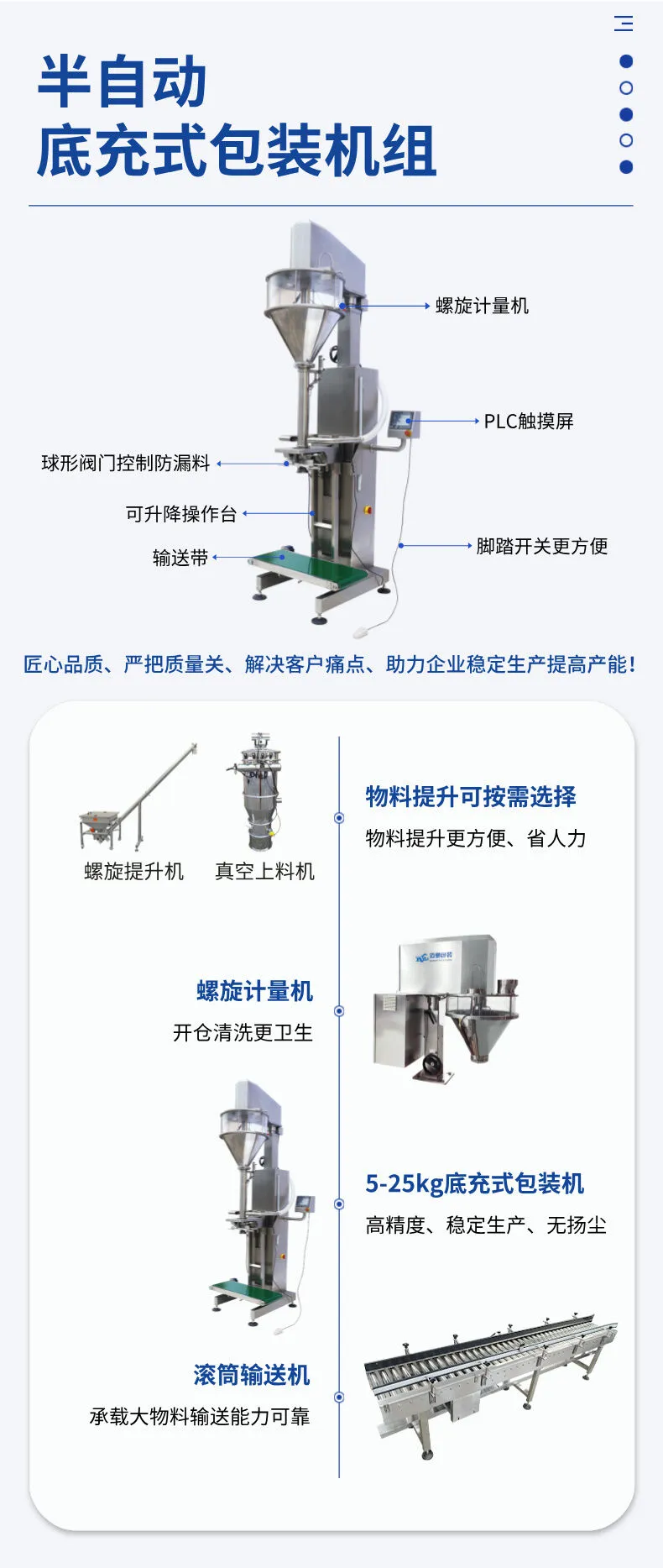

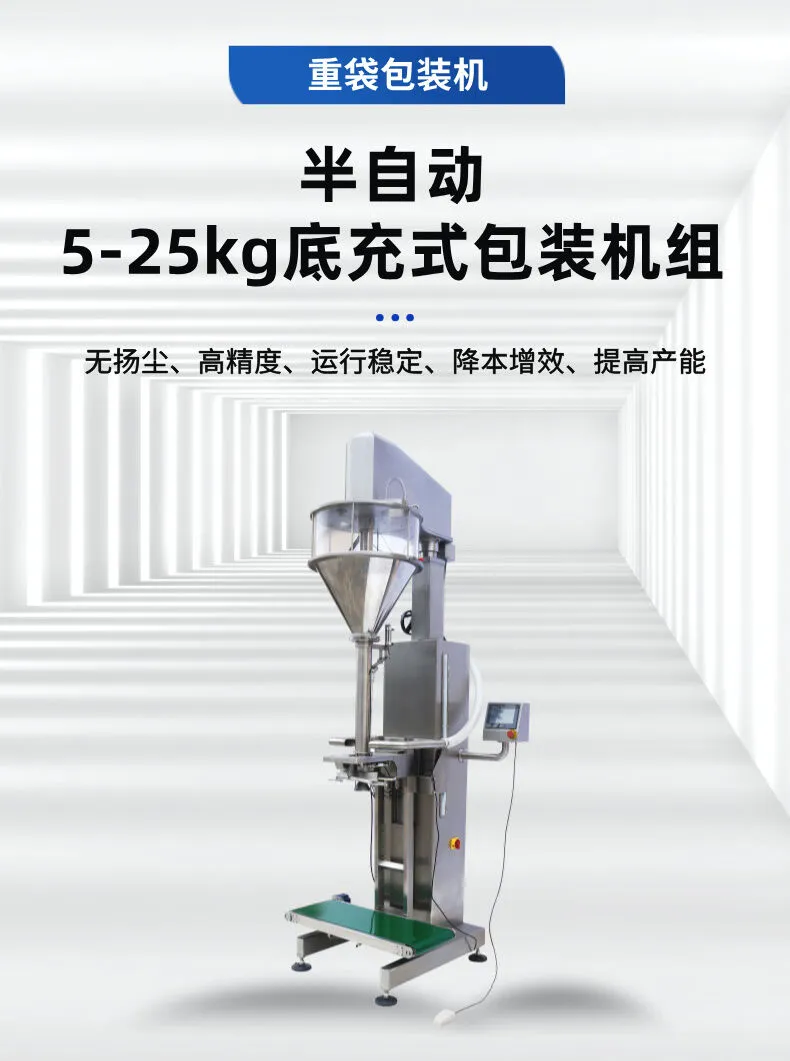

Equipment Introduction：

This machine adopts bottom-fill filling, where material is filled from the bottom during the filling process. The short drop minimizes dust, making it suitable for powders or small granular materials with high packaging accuracy requirements, uneven density, good or poor flowability.

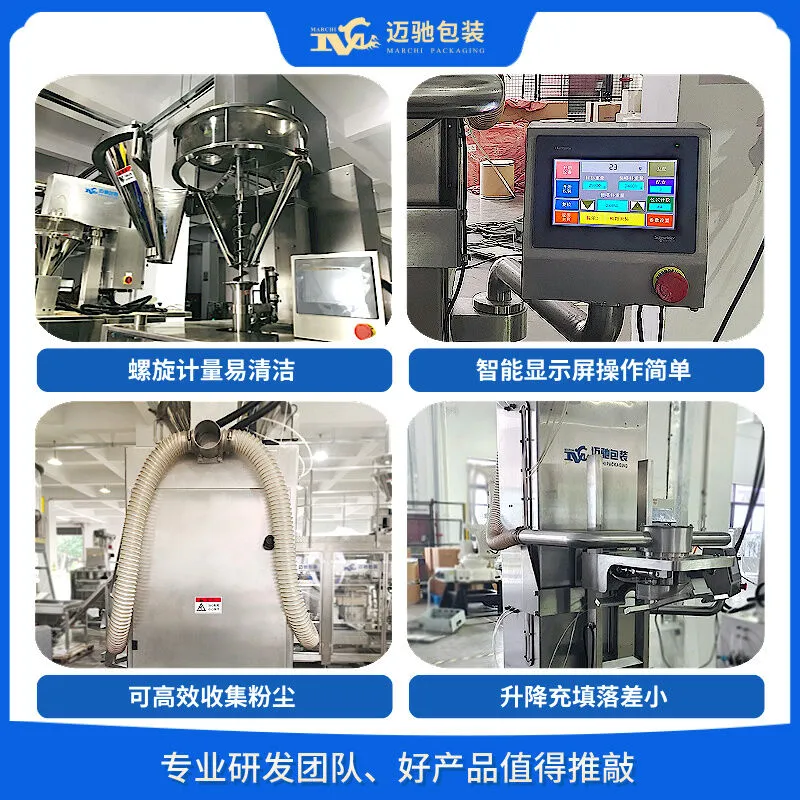

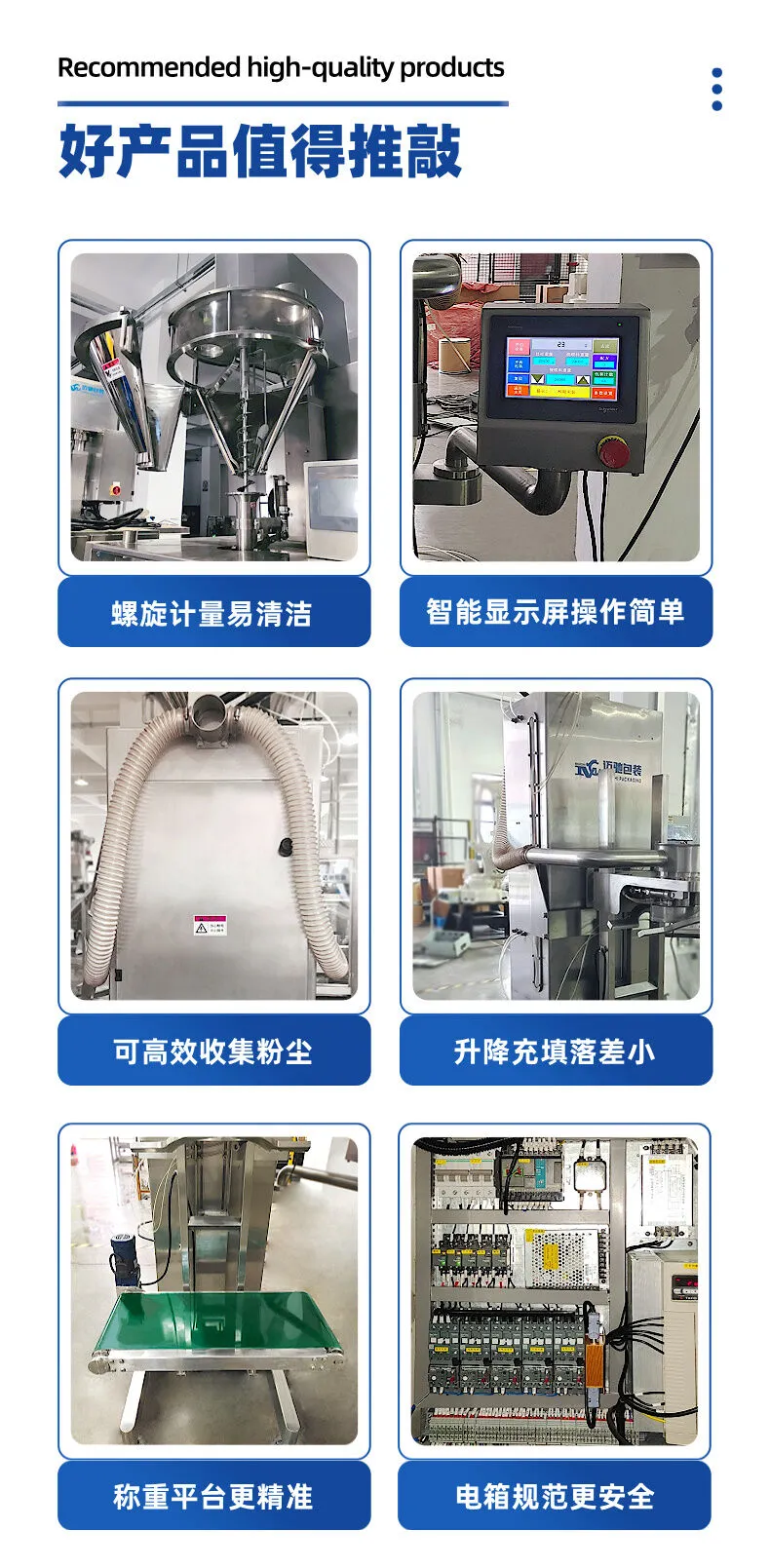

1.Full stainless steel structure, modular or open transparent hopper, easy to disassemble and clean without tools.

2.Pneumatic bag clamping device and bracket mounted on the weight sensor, enabling fast and slow filling according to preset weight.

3.High-response weighing system ensures high accuracy.

4.PLC control with touch screen human–machine interface for easy operation.

5.Parameter adjustments and product formulas can be stored for later use, supporting up to 10 formulas.

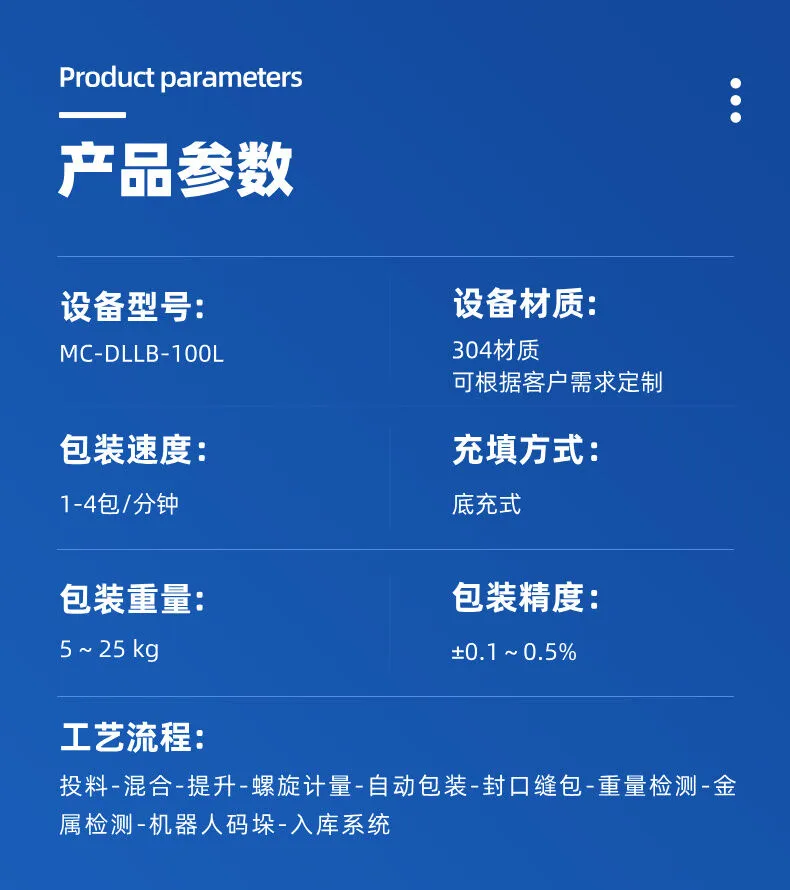

Equipment Parameters：

Model：MC-DLLB-100L
Packaging Weight(kg)：5–25
Packaging Accuracy：±0.1–0.5%
Packaging Speed(bags/min)：1–4
Power Supply：3P AC 208–415V 50/60Hz
Total Power(kW)：2.87
Machine Weight(kg)：450
