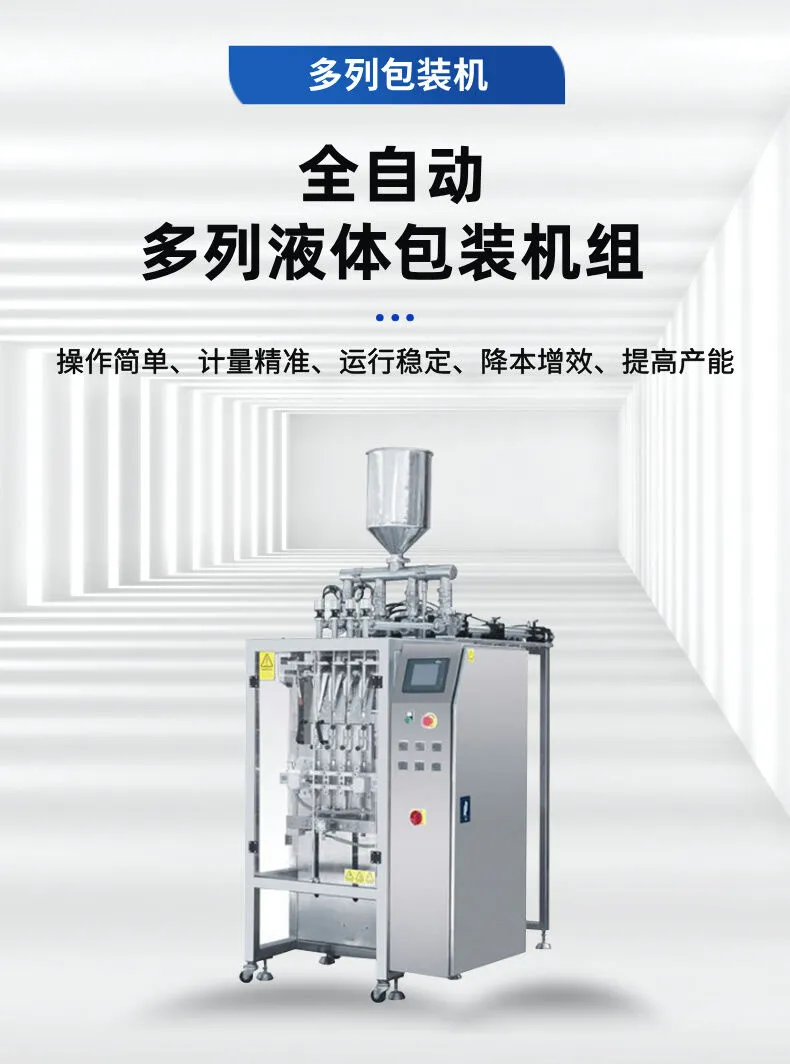

Equipment Introduction:

1.This automatic packaging machine can complete multi-lane automatic weighing, automatic filling, automatic bag making, sealing, and fixed-bag cutting.
2.Adopts advanced technology with a user-friendly design, touch screen control system, and high degree of automation.
3.Equipped with self-alarm, automatic stop, and self-diagnosis functions; simple to operate, quick to maintain, automatically displays the number of packages, and conveniently calculates machine output.
4.Uses heat-sealing principle, motor-controlled film pulling, and smooth, fast bag feeding.
5.Equipped with high-sensitivity photoelectric sensors that can automatically track and locate print marks, ensuring complete logo patterns when packaging materials with color marks.
6.Features an integrated support frame for easier adjustments.
7.The whole machine is made of 304 stainless steel and aluminum alloy.

Equipment Parameters:

Model: MCDL190T
Bag Length (mm): 70～200
Bag Width (mm): 16～42
Film Width (mm): Max190
Number of Lanes: 2
Packaging Speed (bags/min): 35～50
Power Supply: 220V 50Hz 3.5kW
