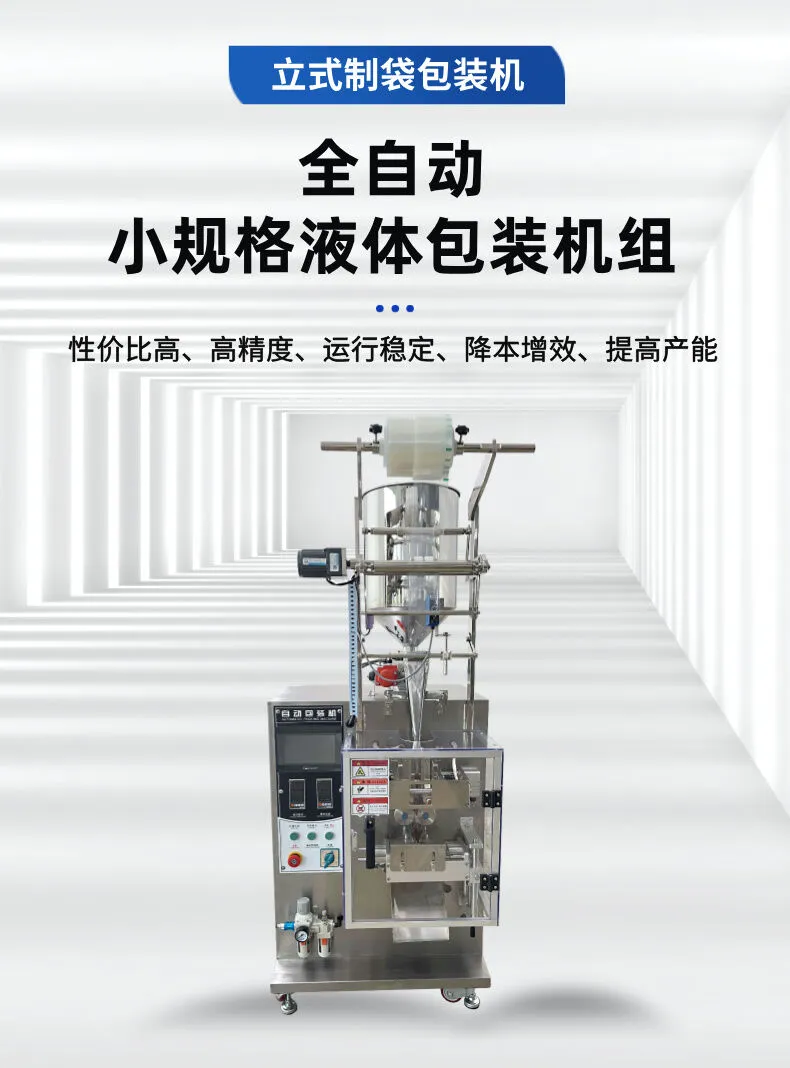

Equipment Introduction:

1.Can automatically complete bag pulling, bag forming, filling, weighing, sealing, cutting, counting, hot stamping date coding, and product output in one fully automated process.

2.Imported PLC control system with Chinese and English color touch screen display; required parameters can be set in the display unit to achieve optimal packaging results.

3.High accuracy; bag length can be changed simply by adjusting parameters, with photoelectric control to ensure accuracy and obtain complete trademark patterns.

4.The overall machine frame is made of stainless steel with fine surface finishing, smooth, easy to clean, and suitable for disinfection.

5.Parts in contact with materials are made of high-quality stainless steel and comply with GMP requirements. Related components adopt a modular design, making them easy to disassemble and assemble with strong versatility.

6.Optional: thermal transfer coding machine, ribbon coding machine, feeding machine, finished product conveyor.

Equipment Parameters:

Equipment Model: MC-240YT

Packaging Speed: 20-60 bags/minute

Packaging Range: 5-100 g

Packaging Film Width: ≤280 mm

Bag Size: L40-150 mm, W40-140 mm

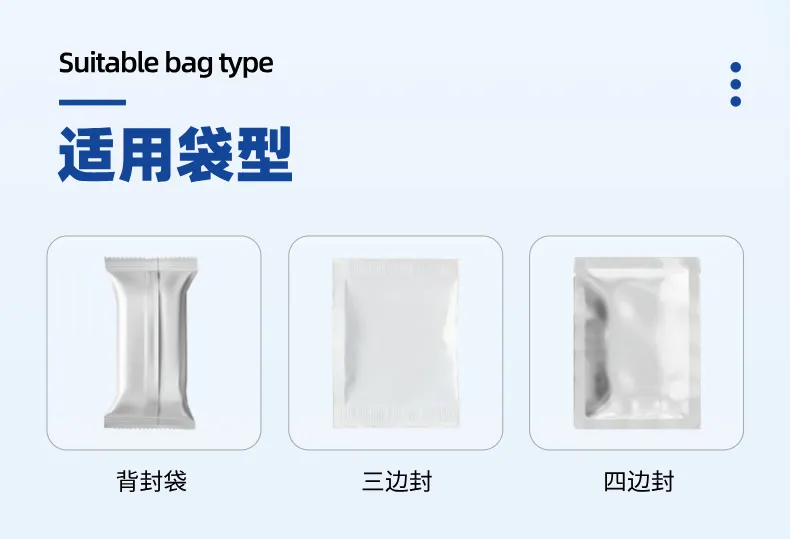

Sealing Type: Back seal / Three-side seal / Four-side seal / Special-shaped bag

Sealing Pattern: Serrated / Straight / Patterned / Mesh

Power Supply: 220V/380V 50HZ/60HZ, 1350W

Packaging Materials: Laminated film / laminated paper / polyethylene, nylon/polyethylene, polyester/aluminum foil/polyethylene, tea filter paper, etc.

Air Consumption: 0.8 MPa 0.4 m³/min

Cutting Knife Type: Flat knife / Serrated knife / Rounded knife / Rotary knife

Machine Weight: Approx. 180 KG

Machine Dimensions: L900W800H1900 (mm)
